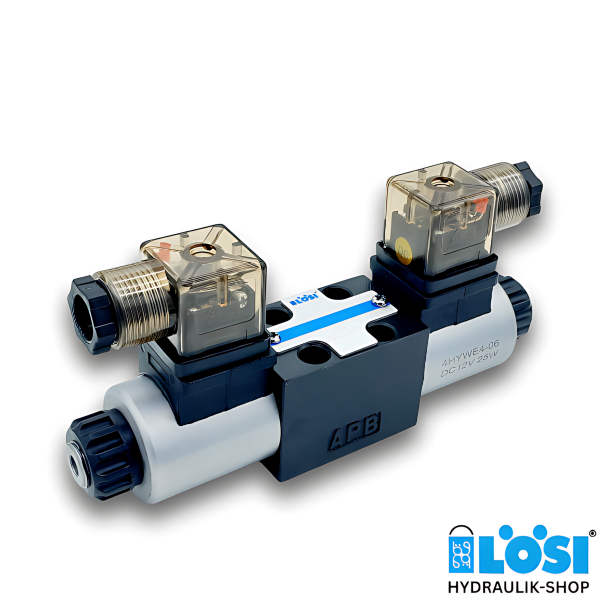

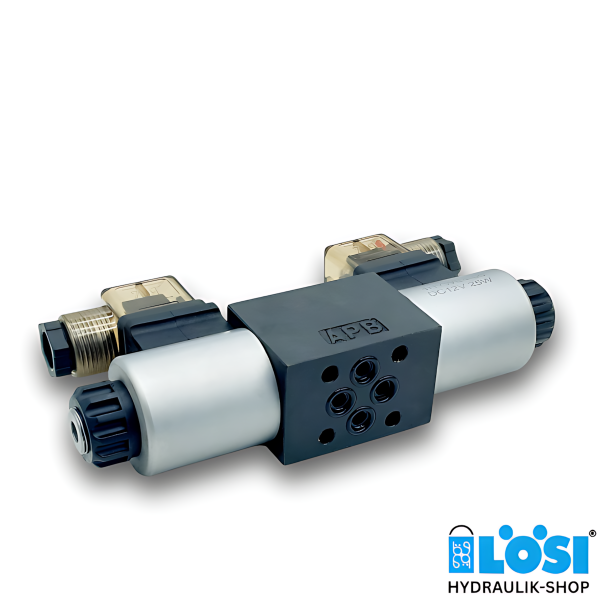

Hydraulic 4/3-Way Valve, NG04, 12V DC, A,B,P,T Locked
Hydraulic Valve, 4/3-Way Valve, Solenoid Valve NG04, 12V DC, A, B, P, T Locked
General Data:
- 4/3-way valve, hydraulic valve
- Nominal size NG04
- Directly controlled
- For modular construction
- Max. working pressure: 250 bar
- Valve voltage: 12V DC
- Max. flow rate: 25 l/min
- Temperature range: -20 to 70°C
- Type: 4 HYWE4-3C2-D12Z5L/50

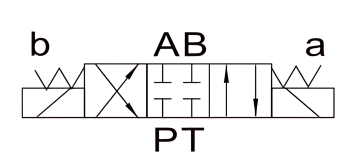

Circuit diagram:
