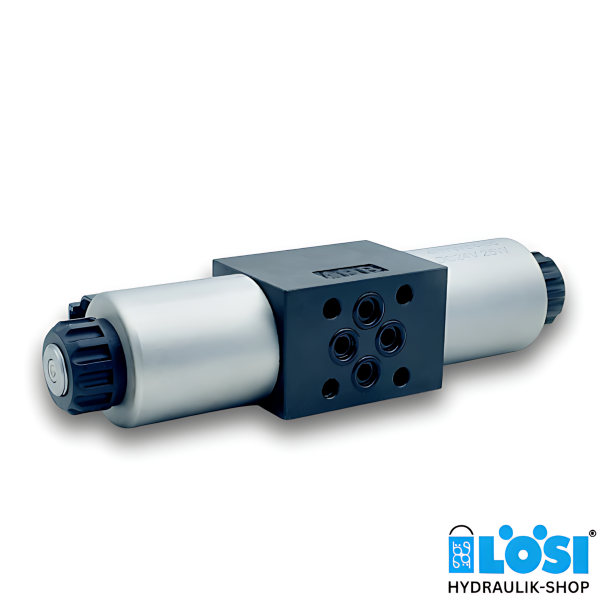

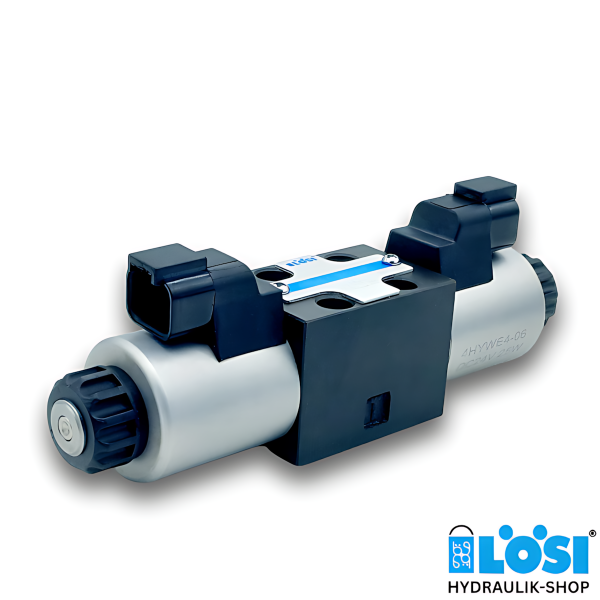

Hydraulic 4/3-Way Valve NG04 A-B-T connected 12V DC DT04
Hydraulic Valve, 4/3-Way Valve, Solenoid Valve NG04, 12V DC, Deutsch Plug, A-B-T connected
General Data:
- 4/3-way valve, hydraulic valve
- Nominal size NG04
- Directly controlled
- For modular construction
- Max. working pressure: 250 bar
- Valve voltage: 12V DC
- Max. flow rate: 25 l/min
- Temperature range: -20 to 70°C
- Type: 4HYWPWE4-3C4-D12/51 (DT04)

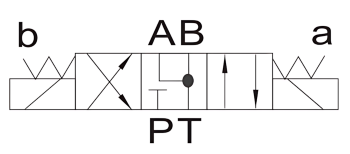

Circuit diagram:
