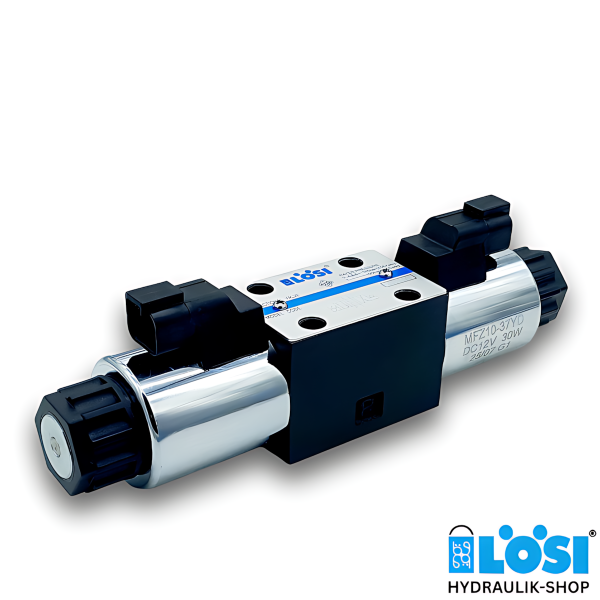

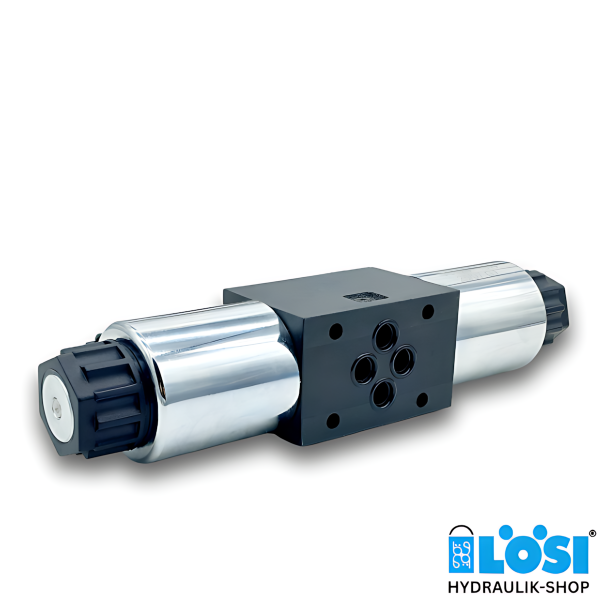

Hydraulic 4/3-Way Valve NG06, P-T Connected, 12 V DC, Deutsch Plug
Hydraulic Valve, 4/3-Way Valve, Solenoid Valve NG06, Deutsch Plug, 12V DC, Normally P-T Connected
General Data:
- 4/3-way valve, hydraulic valve
- Nominal size NG06
- Directly controlled
- For modular construction
- Max. working pressure: 315 bar
- Valve voltage: 12V DC
- Max. flow rate: 80 l/min
- Temperature range: -20 to 70°C
- Type: WPFW-02-3C6-D12Z5L/50

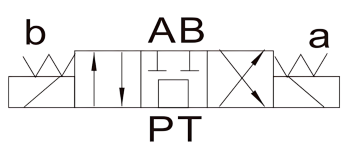

Circuit diagram:
