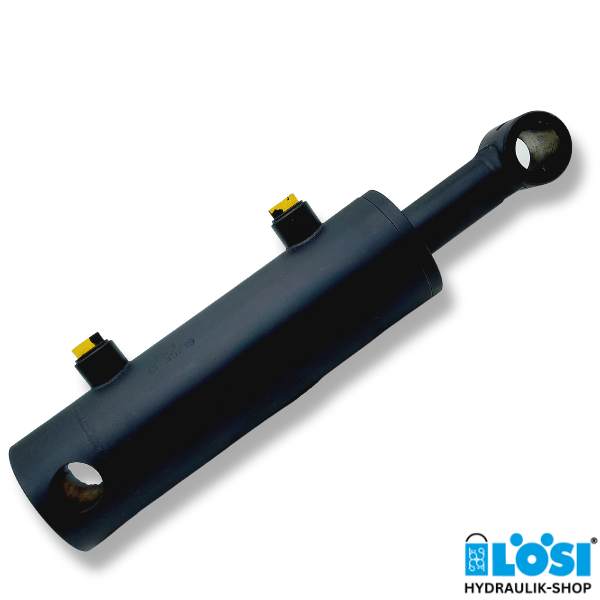

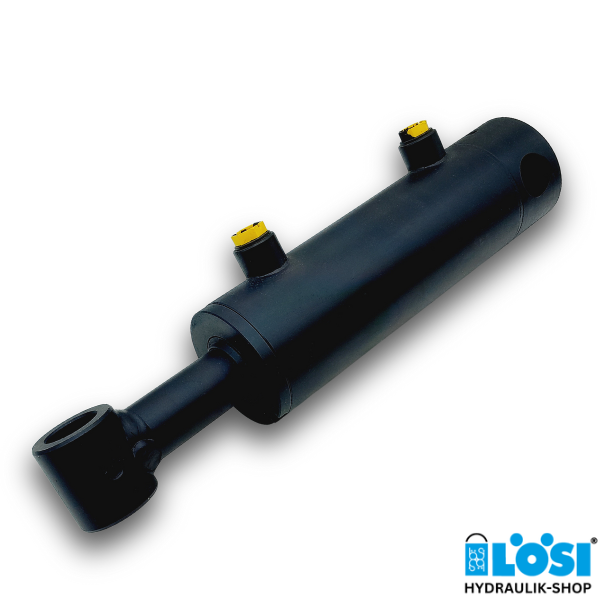

Hydraulic Cylinder DW60/30-100 with Swivel Eyes
Double-acting Hydraulic Cylinder DW60/30-100 with Swivel Eyes
General Data:
- Double-acting hydraulic cylinder with swivel eye mounting
- Stroke selectable from 100-1000 mm
Technical Data:

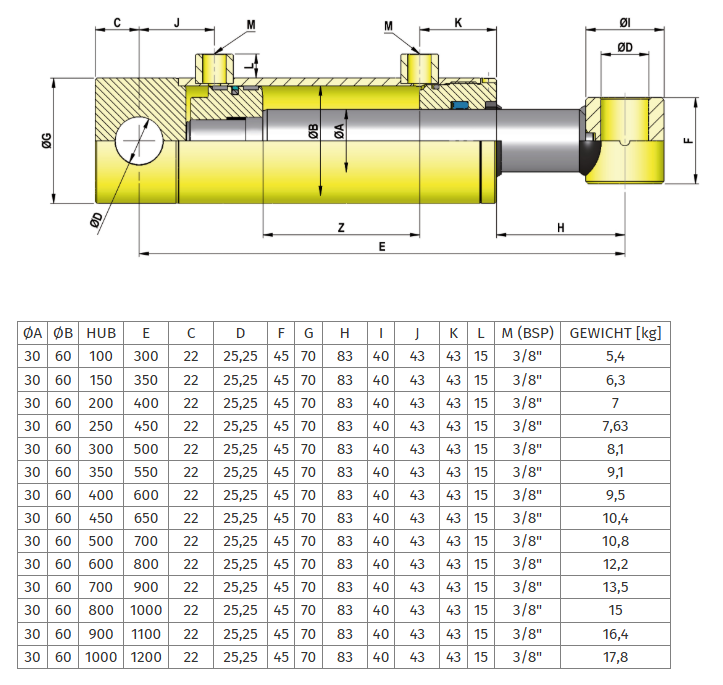

- Ø piston: 60mm (other sizes on request)
- Ø piston rod: 30mm
- Stroke: 100mm (other stroke lengths on request)
- Max. pressure: 200 bar
- Max. lifting speed: 0.5 m/s

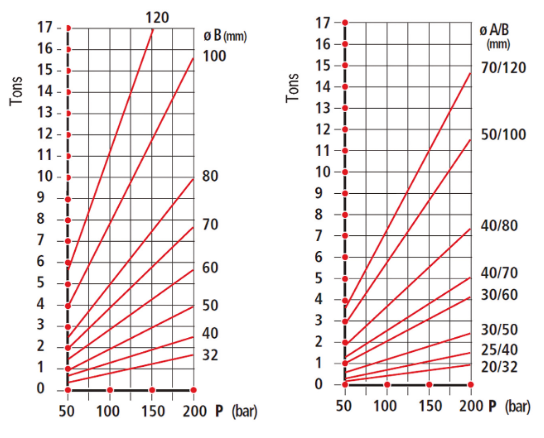

- Maximum pressing force approx. 5.6 tonnes
- Oil connections: 2x 3/8"
We have a large selection of hydraulik cylinders in our shop/catalog. If the cylinder you require is not included in our range, we can supply many models at short notice. Just get in touch with us.
Do you have questions about our hydraulic cylinders? Do you need assistance with the right selection of your hydraulic zylinder? Then please feel free to contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via What's App.
