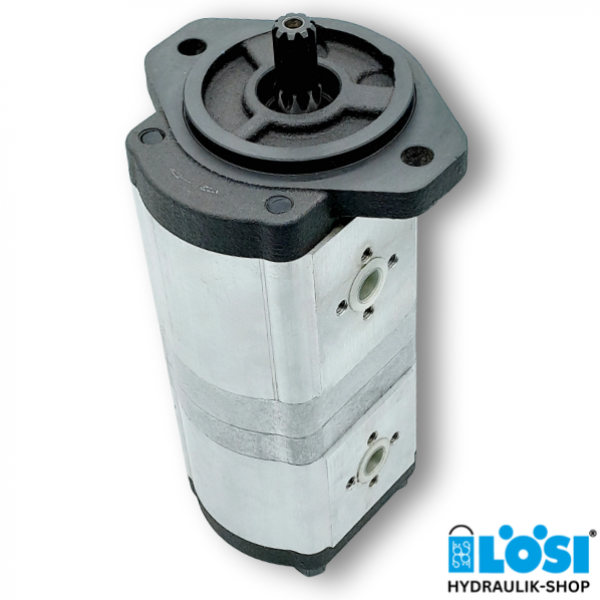

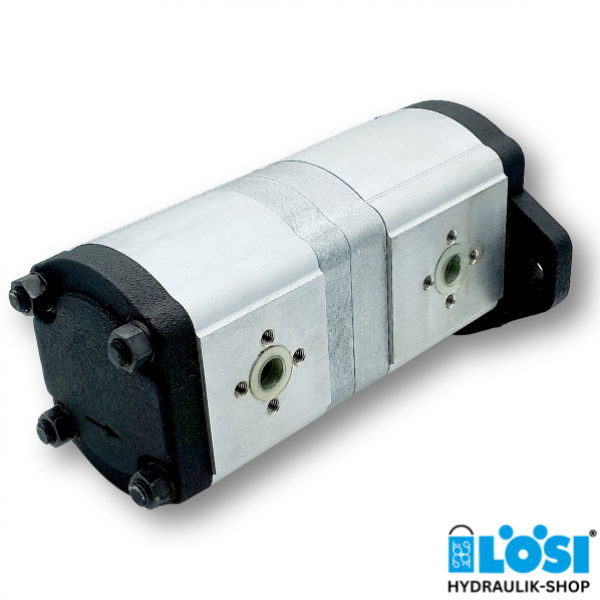

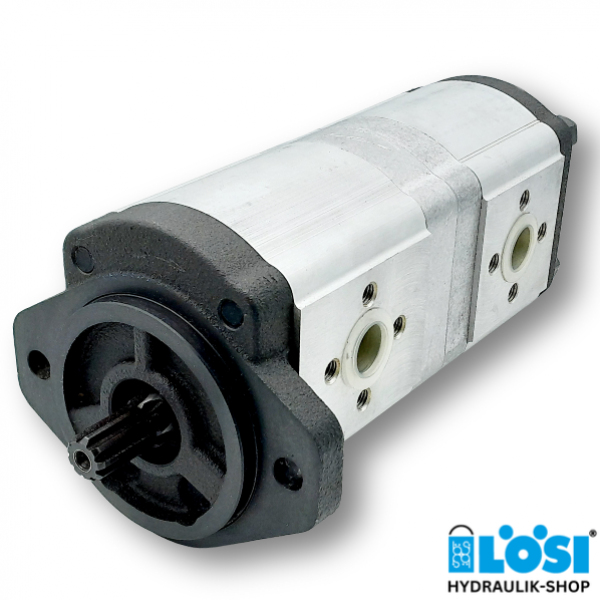

Hydraulic double gear pump, BG2+BG2, clockwise, 22+22 cm3/rev, SAE A flange, splined shaft 9T, oil connections four-hole flange English-Ital. standard
Specifications:
Double gear pump group 2 + group 2
Displacement [ccm/rev]: 22+22
Maximum pressure [bar]: 180
Rotation direction: right
Shaft: splined shaft 9T
Centering: Ø82.55 mm
Flange hole: 2x Ø11 mm
Oil connection suction side: BCD Ø39,7 mm
Oil connection outlet: BCD Ø30,2 mm
Do you have any questions about our gear pumps? Do you need support in choosing the right gear pump? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
