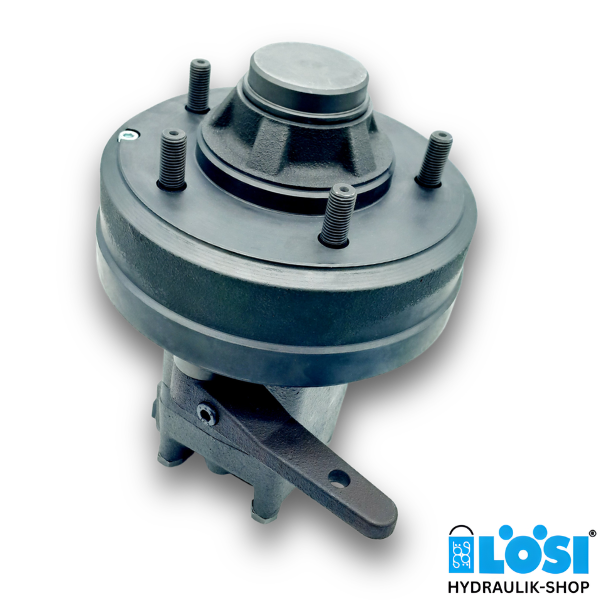

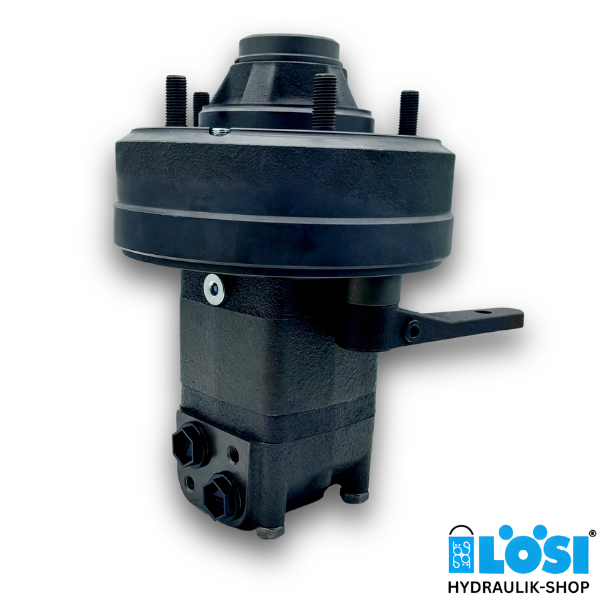

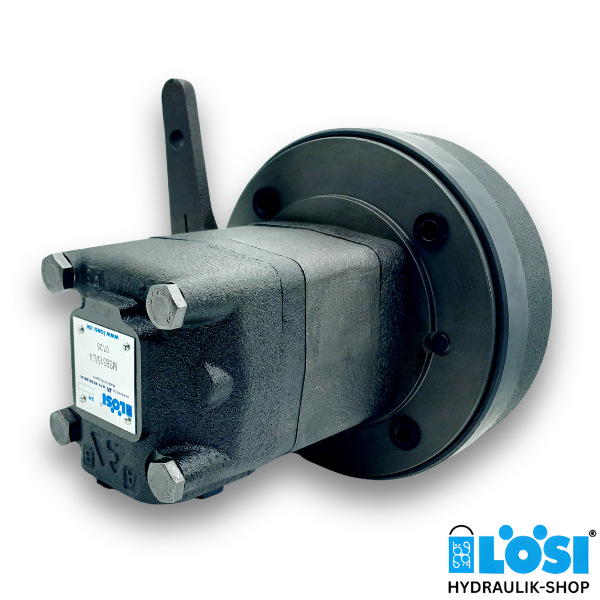

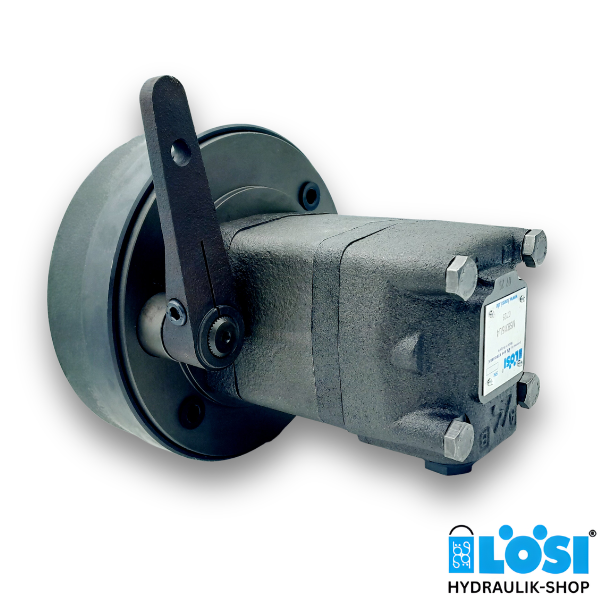

Lösi EPMSY-B 200 L Hydraulic Motor, 200.0 cc/rev, with Drum Brake 75 daNm, Brake Lever on the Left, Reinforced Cardan Shaft
Specifications:
- Displacement [ccm/rev]: 200.0
- Side ports 2x G1/2 inch BSPP
- Shaft: omit, for B, S, und V flange
- Mounting flange: motor with drum brake
- Break lever on the left
- Reinforced internal cardan shaft
Technical Data (for continuous use):
- max. speed: 375 rev/min
- max. torque: 566 Nm
- max. output: 18,1 kW
- max. oil flow: 75 l/min
- max. inlet pressure: 210 bar
- minimum speed: 6 rev/min
- max. return pressure with drain line = 140 bar
Download datasheet EPMSY
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
We offer a wide range of highly interchangeable hydraulic motors from many leading manufacturers, including Danfoss, White, Eaton and SAM/Brevini. If you cannot find the right motor, please contact us and we will be happy to provide you with a personalised quote.
