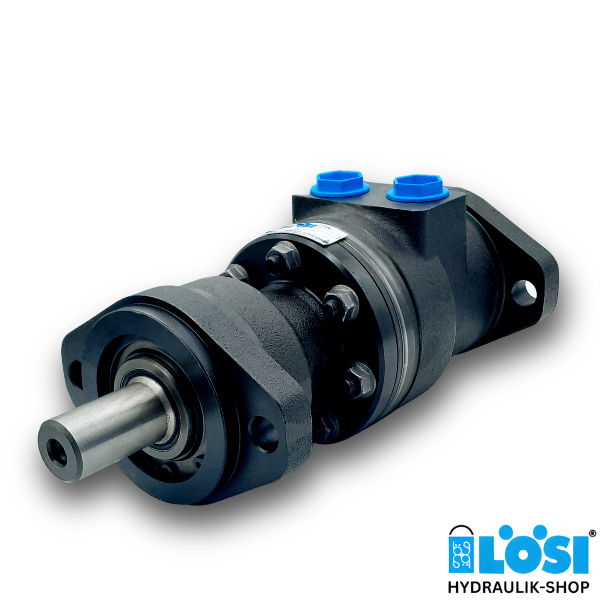

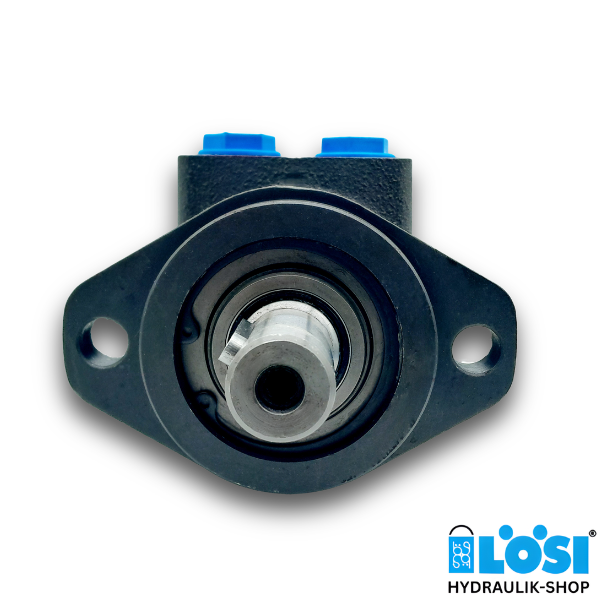

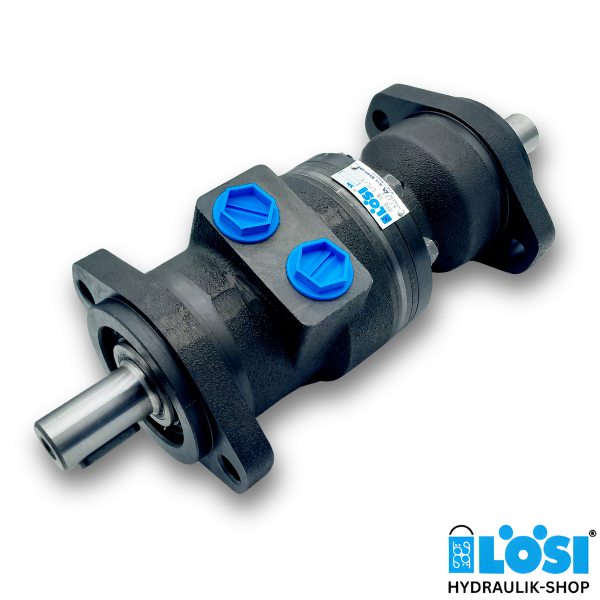

EPRM-B 315 C / C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with Double Shaft
Specifications:
- Displacement [ccm/rev]: 315.7
- Side ports 2x G1/2 inch BSPP

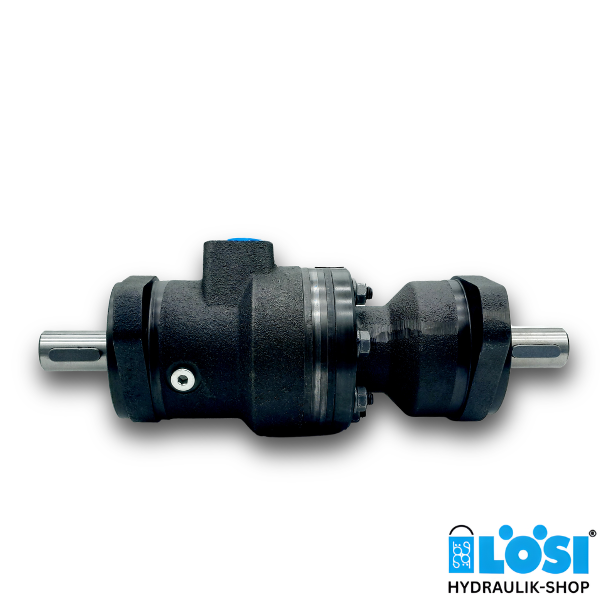

- Shaft: cylindrical double shaft – Ø 25 mm
- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 190 rev/min
- max. torque: 300 Nm
- max. output: 5.0 kW
- max. oil flow: 60 l/min
- max. torque on shaft ‘A’: 200 Nm
- max. torque on shaft ‘B’: 200 Nm
- max. return pressure with drain line, or max. pressure in the drain line = 75 bar
Download datasheet EPRM-B
Special features like LSV valve for low speeds, anti-corrosion paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPRM-B. Do you need support in choosing the right EPRM-B hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
