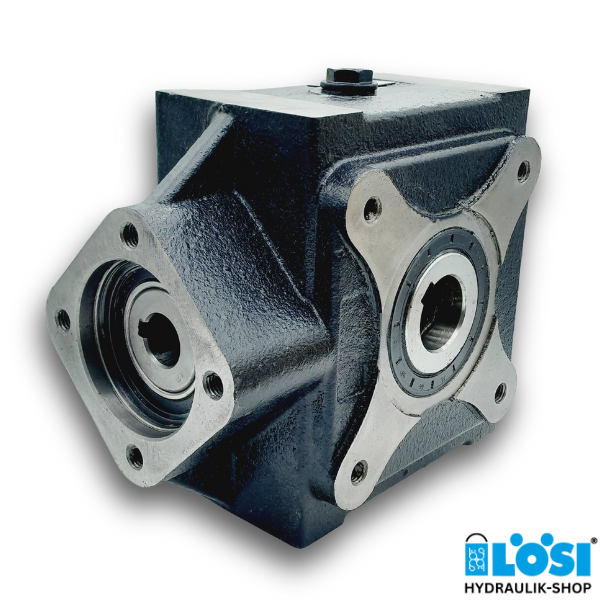

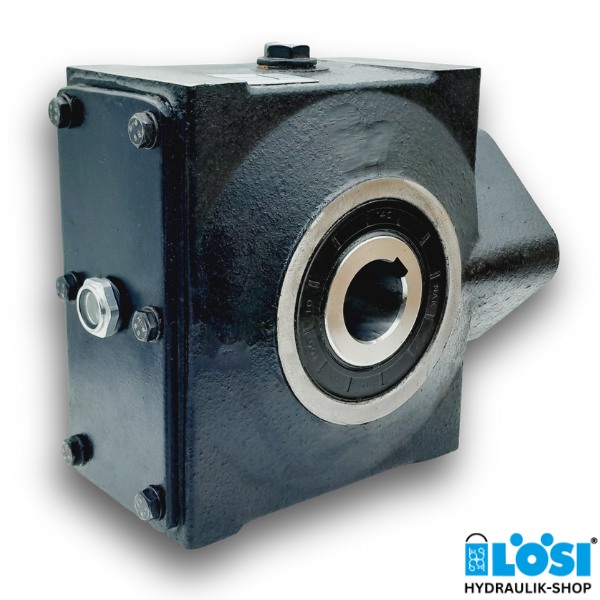

Hydraulic Scraper Floor Gearbox Type 5705
Hydraulic Scraper Floor Drive - Hydraulic Gearbox 5705

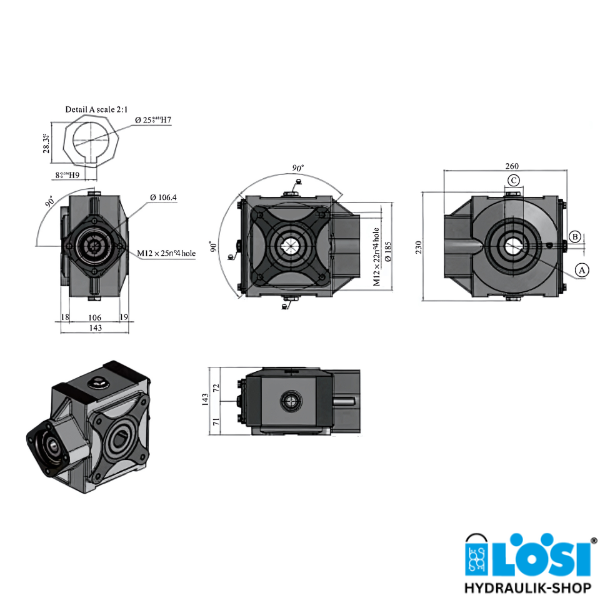

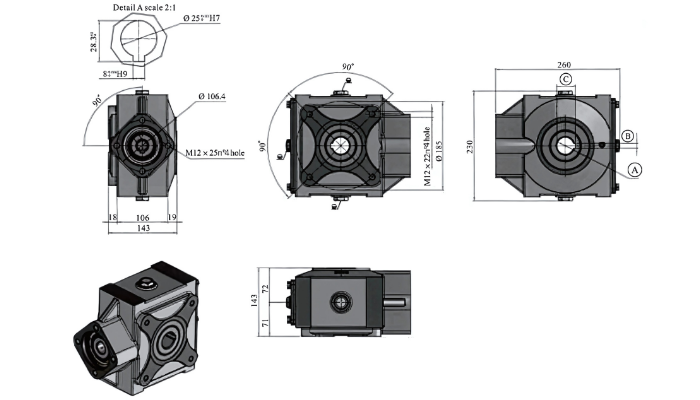

Technical Data:
- Torque 1200 Nm
- Reduction ratio: 4:1
- Shaft input output (A) Ø40mm
- Shaft input drive Ø25mm

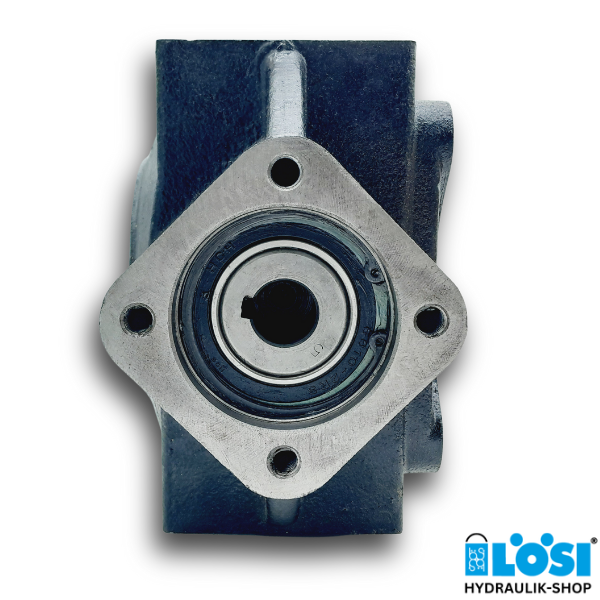

- Input: Hydraulic motor with 25 mm shaft, SAE A flange
- Robust cast iron construction
- Weight: 18kg
- Higher torque with single gerotor motor
- Gear oil recommendation: SAE 80W-90, 1 litre
- Alternative to Berma RT120
Download data sheet scraper floor gearbox
Do you have any questions about our scraper floor gearboxes? Do you need support in choosing the right scraper floor gearbox? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
