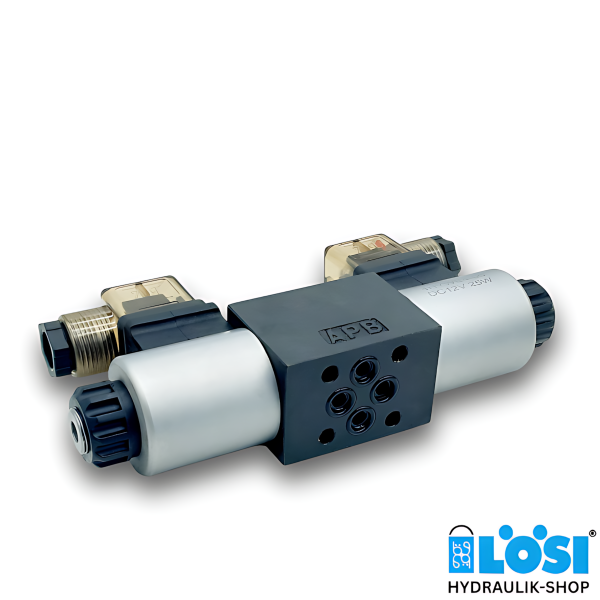

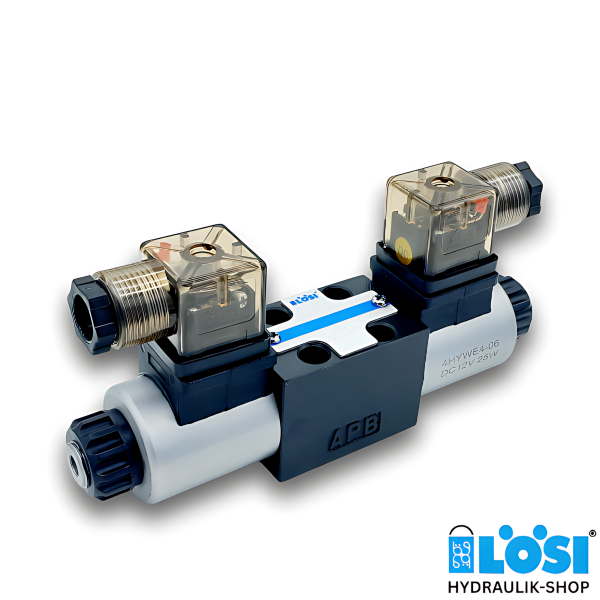

Hydraulic valve, 4/3-way valve, NG04, P and T connected, 12V DC
Hydraulic valve, 4/3-way valve, solenoid valve NG04, P and T connected, 12V DC
General Data:
- 4/3-way valve, P and T connected
- Nominal size NG04
- Directly controlled
- For modular construction
- Max. working pressure Port P,A,B: 250 bar
- Max. working pressure Port T: 100 bar
- Valve voltage: 12V DC
- Max. flow rate: 25 l/min
- Temperature range: -20 to 70°C
Circuit diagram:
