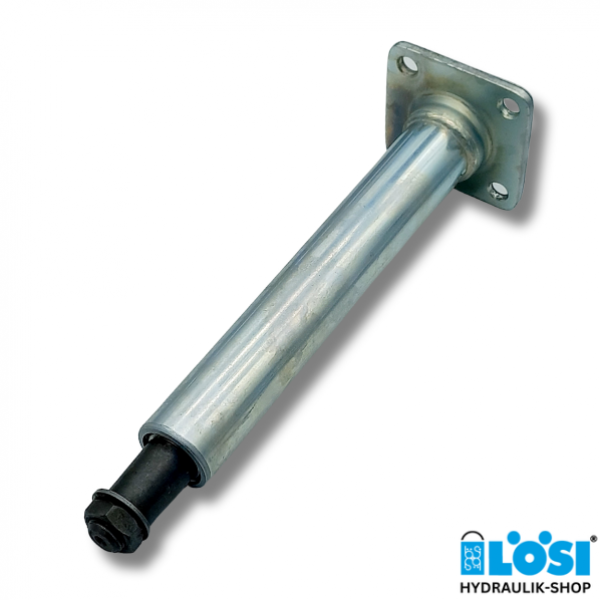

KK 120-I Steering Column
Specifications:
- Length: 120.0 mm
- Weight: 0.75 kg
- Max. steering wheel torque: 24 daNm (2124 lb-in)
- Max. bending moment: 20 daNm (1770 lb-in)
- Max. axial load: 100 daN (225 lbs)
- Painting or anti-corrosion paint available on request
Technical Data:
- Flange without Tabs
- Shaft extension Option I
- Without electrical signal collection
Download datasheet KK
Do you have any questions about our Steering column KK? Do you need support in choosing the right Steering column KK? Then please contact us by phone on +49 631 351240, via our contact form , by email at shop@loesi.de or with WhatsApp .
