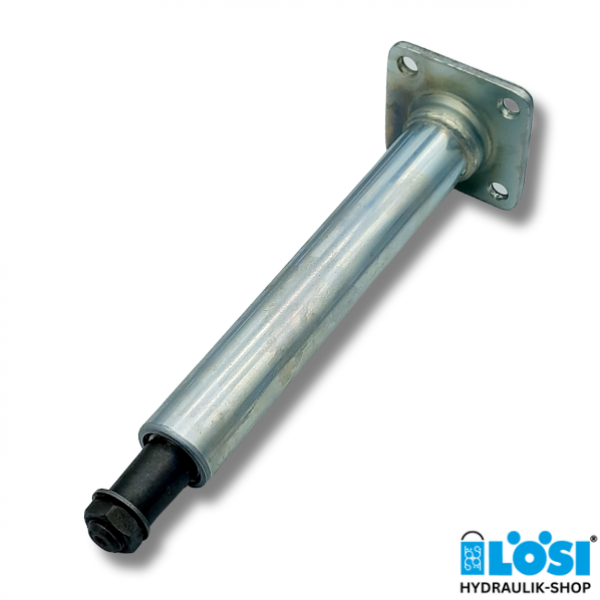

KK 150-II Steering Column
Specifications:
- Length: 168.2 mm
- Weight: 1.10 kg
- Max. steering wheel torque: 24 daNm (2124 lb-in)
- Max. bending moment: 20 daNm (1770 lb-in)
- Max. axial load: 100 daN (225 lbs)
- Painting or anti-corrosion paint available on request
Technical Data:
- Flange without Tabs
- Shaft extension Option II
- Without electrical signal collection
Download datasheet KK
