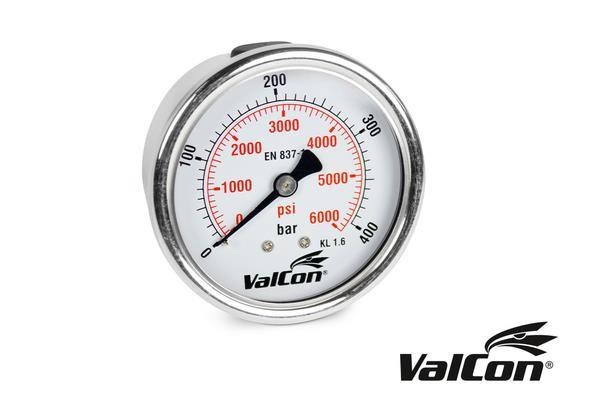

Double scale pressure gauge according to EN 837-1, NG 63
Specifications:
- Connection thread (GA): 1/4" male thread
- Pressure load (bar): Resting load: 3/4 x scale value, alternating load: 2/3 x scale value, short-term: 1 x scale value
- Nominal size: 63
- Ø cousing front side d1 (mm): 68.0
- Scaling: bar/psi
- t (mm): 29.5
- Ø cousing back side d2 (mm): 62.0
- T (mm): 57.5
- Display range (bar): 0 - 16
- Filling liquid: Glycerin 99.7%
- Accuracy class: 1.6

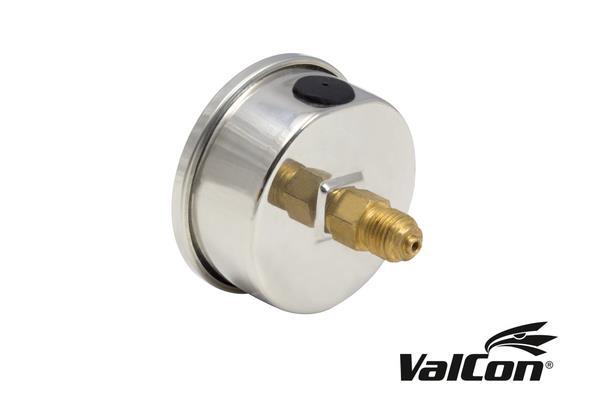

- Process connection: lower back, centred
- Temperature range (°C): -20°C to +60°C
- Ambient temperature range (°C): -20°C to +80°C
- Material connection: brass
- Housing material: stainless steel
- Glass material: Plastic, polycarbonate
