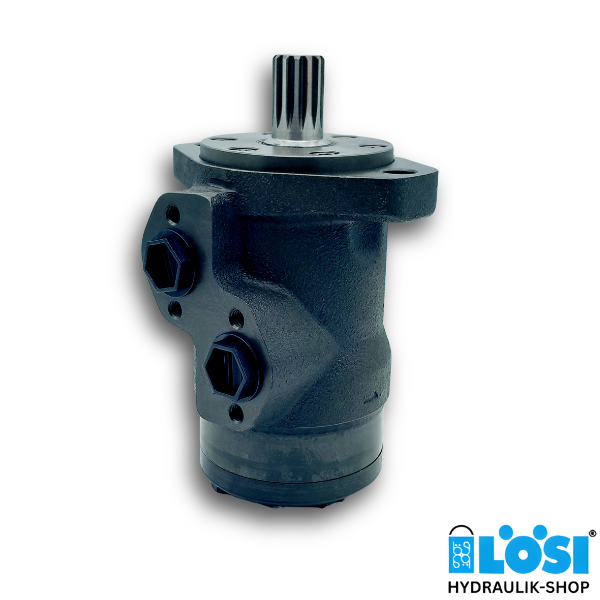

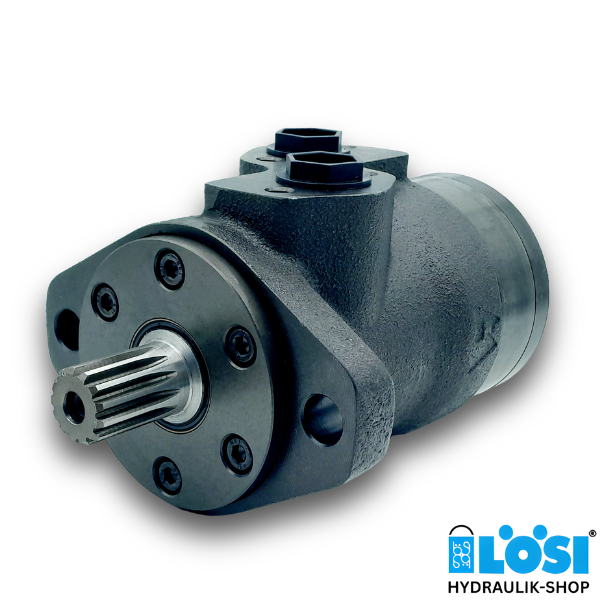

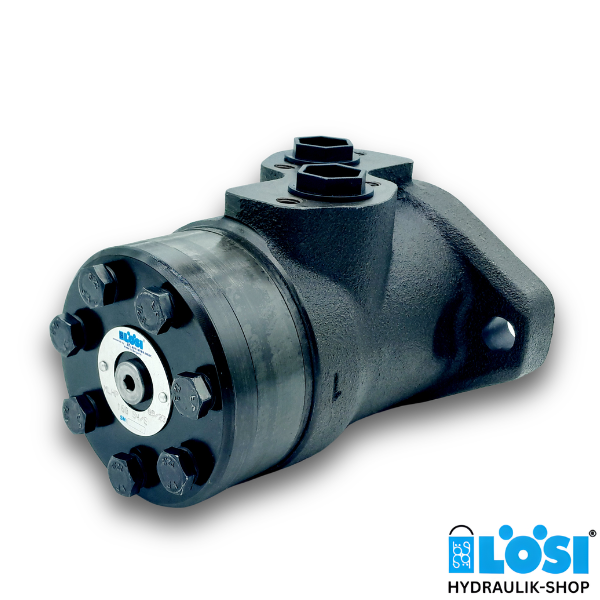

MLHP 160 S 4 Hydraulic Motor
MLHP 160 S 4, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 158.4
- Side ports 2x 7/8-14 UNF, O-ring, 7/16-20 UNF
- Shaft: 7/8" [22,2 mm] 13T Splined
- 2-hole oval flange SAE A (hole distance: 106.4 mm)
- Type: MLHP 160 S 4 (other types available on request; see data sheet)
Technical Data (for continuous use):
- max. speed: 382 rev/min
- max. torque: 313 Nm
- max. output: 10.1 kW
- max. oil flow: 60.6 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type MLHP. Do you need support in choosing the right MLHP hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
