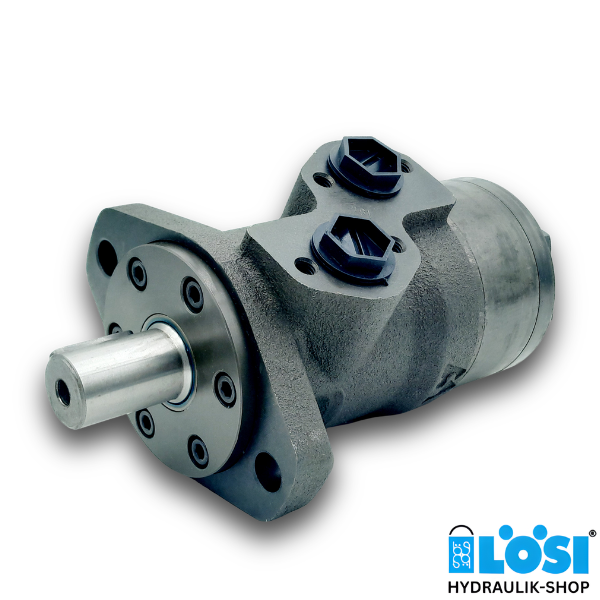

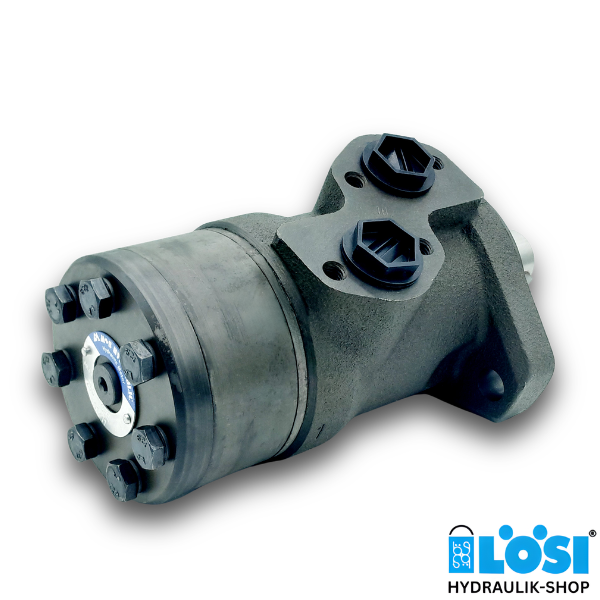

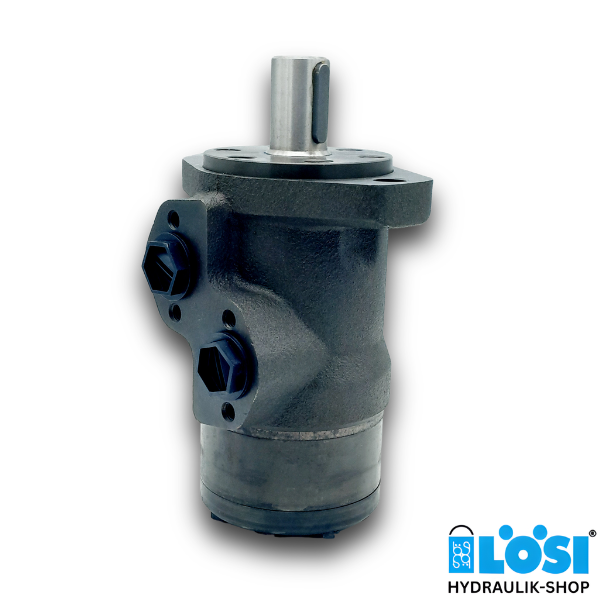

MLHP 250 C 5, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 247.5
- Side ports 2x1/2-14 NPTF, 7/16-20 UNF
- Shaft: Cylindrical: Ø 25.4 mm
- 2-hole oval flange SAE A (hole distance: 106.4 mm)
- Type: MLHP 250 C 5 (other types available on request; see data sheet)
Technical Data (for continuous use):
- max. speed: 245 rev/min
- max. torque: 380 Nm
- max. output: 7.5 kW
- max. oil flow: 60.6 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet MLHP
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss, 151-7047, OMP 250 with 1 inch straight shaft, parallelkey
Do you have any questions about our hydraulic motor type MLHP. Do you need support in choosing the right MLHP hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
