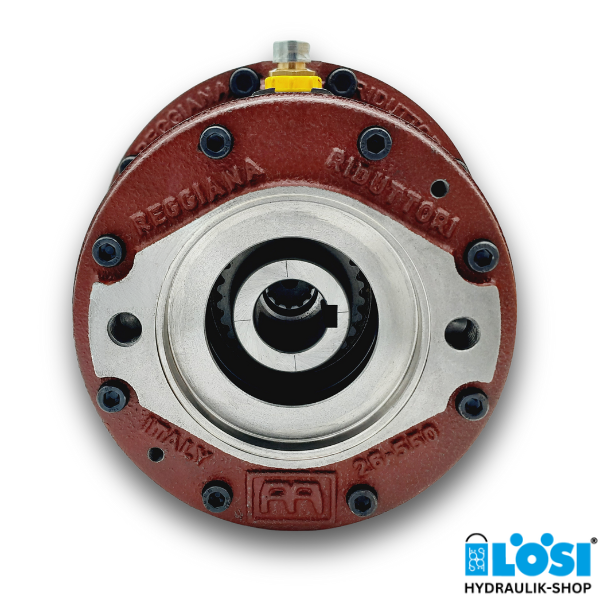

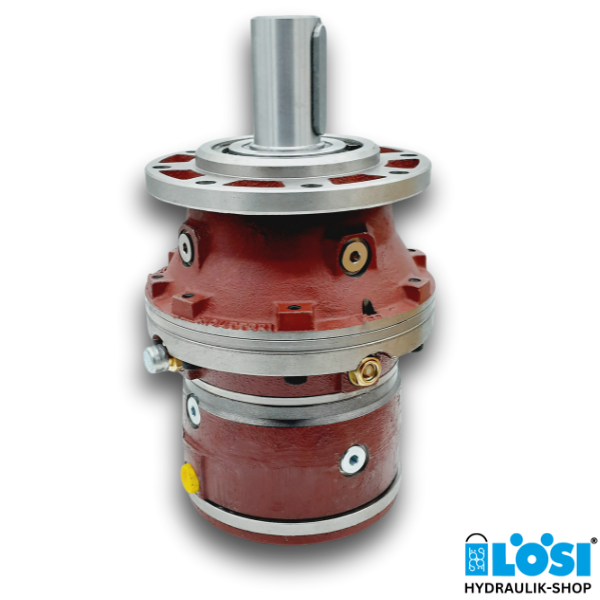

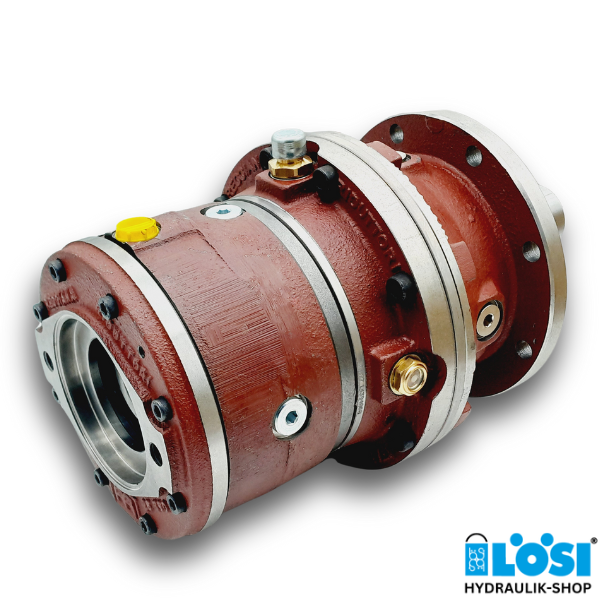

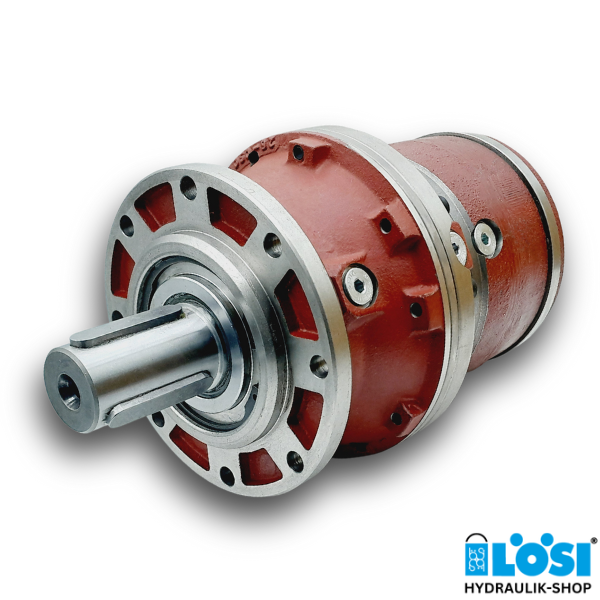

Planetary Gearbox RR 105 D MC 11.27:1 + Multi-Disc Brake RF 2/14 for Hydraulic Motor EPM/EPRM, Danfoss OMP/OMR, Hydraulik Nord GMP/GMR, CPM/CPRM
Specifications:
The Reggiana Riduttori RR 105 planetary gearbox is part of the modular series of planetary gearboxes designed for industrial and mobile applications. Size 105 is designed for medium torque ranges and offers a compact design with high power density. It offers a high degree of flexibility thanks to various ratios and mounting options and is particularly suitable for applications with limited installation space that nevertheless require high power transmission.
Typical applications:
- Cranes (harbor, offshore, mobile cranes)
- Lifting systems
- Conveyor technology
- Mechanical engineering
Technical Data:
- 1-stage planetary gearbox + multi-disc brake RF 2/14
- Reduction ratio: 11,27:1
- Gearbox input: mounting flange for hydraulic motor
EPM/EPRM, Danfoss OMP/OMR, Hydraulik Nord GMP/GMR, CPM/CPRM - Shaft output: cylindrical with key Ø 40mm
- Max. torque: 1800 Nm
- Power (kW): 6
- Max. speed: 3500 rpm
Download data sheet planetary gearbox RR 105
Planetary gearboxes are versatile and powerful drive solutions that are available in numerous variants. Due to the many possible constellations of attachment elements and different mountings for motors, not all options are listed directly in our store.
Whether you need special output shafts, individual transmission ratios or special connections - we will find the right solution for you. Simply get in touch with us and together we will put together the perfect planetary gearbox for your application.
Your individual gearbox solution - tailor-made and performance-optimized!
Do you have any questions about our planetary gearboxes? Do you need support in choosing the right gearbox? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
