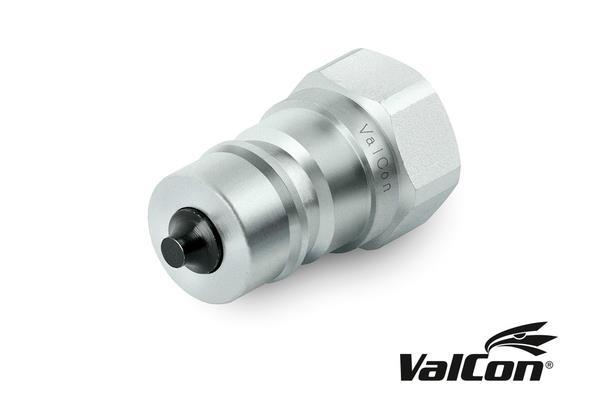

PLUG-IN COUPLING 1/2" BSP, DN12, BG3 ValCon® ISO7241-1A
Valcon® Plug-in coupling series VC-ISO-A (male)
Standard coupling for agriculture applications, interchangeability according to ISO 7241-1A
General data:
- Housing material: Steel
- Gasket material: NBR
- Resistance to red rust [h]: 400
- Resistance to white rust [h]: 200
- Material: Zn-Fe (Chrome III)
Surface:
- Resistance to red rust [h]: 400
- Resistance to white rust [h]: 200
Specifications:
- BG: 3
- DN: 12
- Size: 08
- Inch: 1/2
- Operating pressure (bar): 300
- Thread + standard: BSP female-thread ISO 1179-1
- Connection thread (GA): 1/2"
- Outer ØD plug (mm): 20.6
- Length of plug L2 (mm): 43.5
- SW1 (mm): 27
- l/min at 2 bar: 50
- Standard: ISO 7241-1A
- Temperature range: -20°C to +120°C
- Field of application: General application (e.g., agriculture)
