CONNECTION PLUG 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A
PLUG-IN COUPLING 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A
CONNECTION PLUG 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A

PLUG-IN COUPLING 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A

Approx. 3-4 days Approx. 3-4 days (abroad may vary)
6,51 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

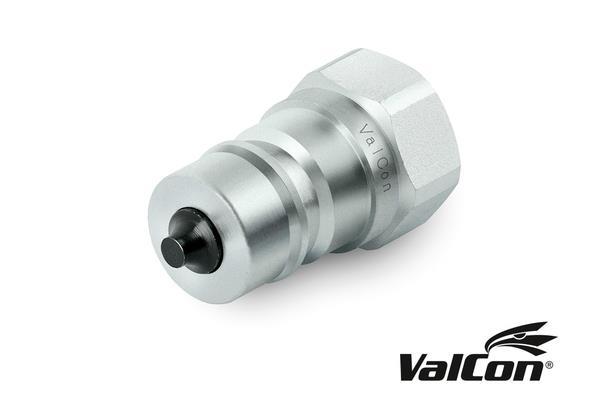

Valcon® Plug-in coupling series VC-ISO-A (male)

Standard coupling for agriculture applications, interchangeability according to ISO 7241-1A

General data:

  • Housing material: Steel
  • Gasket material: NBR
  • Resistance to red rust [h]: 400
  • Resistance to white rust [h]: 200
  • Material: Zn-Fe (Chrome III)

Surface:

  • Resistance to red rust [h]: 400
  • Resistance to white rust [h]: 200

Specifications:

  • BG: 1
  • DN: 06
  • Size: 04
  • Inch: 1/4
  • Operating pressure (bar): 500
  • Thread + standard: BSP female-thread ISO 1179-1
  • Connection thread (GA): 1/4"
  • Outer ØD plug (mm): 11.9
  • Length of plug L2 (mm): 35.5
  • SW1 (mm): 19
  • l/min at 2 bar: 8
  • Standard: ISO 7241-1A
  • Temperature range: -20°C to +120°C
  • Field of application: General application (e.g., agriculture)

VC-HDS2-CEL10-10M



Do you have any questions about our plug-in couplings? Do you need help in choosing the right plug-in couplings? Then feel free to contact us by phone at +49 631 351240, via our contact form, by e-mail at shop@loesi.de or via What's App.
