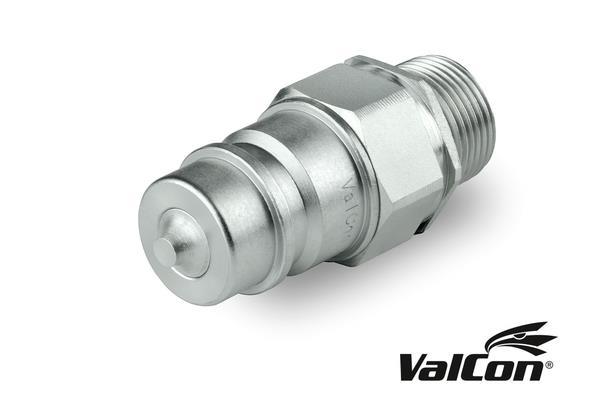

PLUG-IN COUPLING ACCORDING TO ISO7241-1A AG 15L,M22X1.5, DN 12, ValCon®
Plug-in coupling series VC-PP plug
Push-pull coupling according to ISO 7241-1A with breakaway function according to ISO 5675
Advantages:
- Replaceable according to ISO 7241-1A
General data:
- Housing material: Steel
- Gasket material: NBR
- Back-up ring material: PTFE
Surface:
- Resistance to red rust [h]: 200
- Resistance to white rust [h]: 400
- Material: Zn-Fe (Chrome III)
Specifications:
- BG: 3
- DN: 12
- Size: 08
- Inch: 1/2"
- Operating pressure (bar): 300
- Thread + Standard: Metric Male Thread ISO 8434-1-L
- Connection thread (GA): M22x1.5
- Outer Ød plug (mm): 20.6
- Plug length (mm): 60.5
- SW (mm): 27
- l/min at 2 bar: 50
- Standard: ISO 7241-1A
- Temperature range: -20°C to +100°C
- Field of application: General application (e.g. agriculture)
