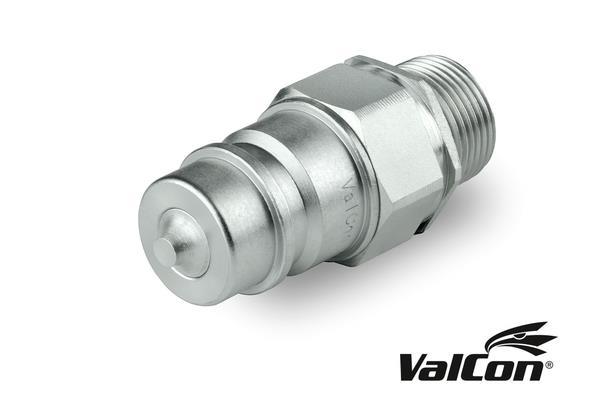

PLUG-IN COUPLING ACCORDING TO ISO7241-1A IG 1/2" BSP PLUG, ValCon®
Plug-in coupling series VC-PP plug
Push-pull coupling according to ISO 7241-1A with breakaway function according to ISO 5675
Advantages:
- Replaceable according to ISO 7241-1A
General data:
- Housing material: Steel
- Gasket material: NBR
Surface:
- Resistance to red rust [h]: 200
- Resistance to white rust [h]: 400
- Material: Zn-Fe (Chrome III)
Specifications:
- BG: 3
- DN: 12
- Size: 08
- Inch: 1/2"
- Operating pressure (bar): 300
- Thread + standard: BSP female thread ISO 1179-1
- Connection thread (GA): 1/2"
- Outer Ø d plug (mm): 20.6
- Length of plug L2 (mm): 44.0
- SW (mm): 27
- l/min at 2 bar: 50
- Standard: ISO 7241-1A
- Temperature range: -20°C to +100°C
- Field of application: General application (e.g. agriculture)
