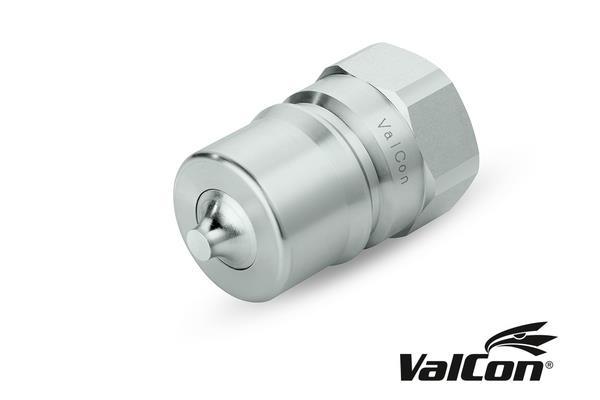

PLUG-IN COUPLING, IG 1/2" BSP, DN12, BG3, ValCon®, ISO7241-1B
Valcon® Plug-in coupling series VC-ISO-B (male)
Standard couplings for industrial applications, ISO 7241-1B interchange
General data:
- Housing material: Steel
- Gasket material: NBR
Surface:
- Resistance to red rust [h]: 400
- Resistance to white rust [h]: 200
- Material: Zn-Fe (Chrome III)
Specifications:
- BG: 3
- DN: 12
- Size: 08
- Inch: 1/2"
- Operating pressure (bar): 280
- Thread + standard: BSP female-thread ISO 1179-1
- Connection thread (GA): 1/2"
- Outer ØD plug (mm): 23.5
- Length of plug L3 (mm): 46.5
- SW1 (mm): 30
- Standard: ISO 7241-1B
- Temperature range: -20°C to +120°C
- Field of application: Industrial, Oil & Gas
