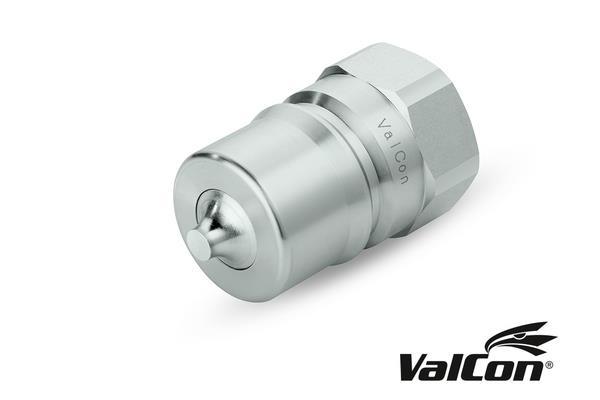

PLUG-IN COUPLING, IG 1/4" BSP, DN06, BG1, ValCon®, ISO7241-1B
Valcon® Plug-in coupling series VC-ISO-B (male)
General data:
- Housing material: Steel
- Gasket material: NBR
Surface:
- Resistance to red rust [h]: 400
- Resistance to white rust [h]: 200
- Material: Zn-Fe (Chrome III)
Specifications:
- BG: 1
- DN: 06
- Size: 04
- Inch: 1/4
- Operating pressure (bar): 350
- Thread + standard: BSP female-thread ISO 1179-1
- Connection thread (GA): 1/4"
- Outer ØD plug (mm): 14.2
- Length of plug L3 (mm): 36.0
- SW1 (mm): 19
- Standard: ISO 7241-1B
- Temperature range: -20°C to +120°C
- Field of application: Industrial, Oil & Gas
