CONNECTION PLUG IG1" BSP, DN25, BG6 ValCon® ISO7241-1A
PLUG-IN COUPLING, IG1" BSP, DN25, BG6 ValCon® ISO7241-1A
CONNECTION PLUG IG1" BSP, DN25, BG6 ValCon® ISO7241-1A

PLUG-IN COUPLING, IG1" BSP, DN25, BG6 ValCon® ISO7241-1A

Approx. 3-4 days Approx. 3-4 days (abroad may vary)
25,59 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

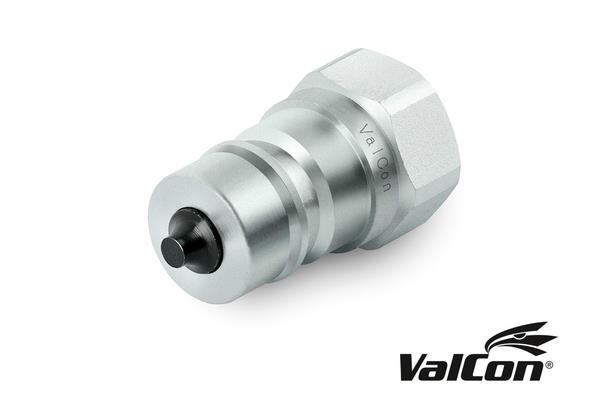

Valcon® Plug-in coupling series VC-ISO-A (male)

Standard coupling for agriculture applications, interchangeability according to ISO 7241-1A

General data:

  • Housing material: Steel
  • Gasket material: NBR

Surface:

  • Resistance to red rust [h]: 400
  • Resistance to white rust [h]: 200
  • Material: Zn-Fe (Chrome III)

Specifications:

  • BG: 6
  • DN: 25
  • Size: 16
  • Inch: 1"
  • Operating pressure (bar): 250
  • Thread + standard: BSP female-thread ISO 1179-1
  • Connection thread (GA): 1"
  • Outer ØD plug (mm): 34.3
  • Length of plug L2 (mm): 59.5
  • SW1 (mm): 41
  • l/min at 2 bar: 180
  • Standard: ISO 7241-1A
  • Temperature range: -20°C to +120°C
  • Field of application: General application (e.g. agriculture)


VC-HDS2-CEL10-10M
