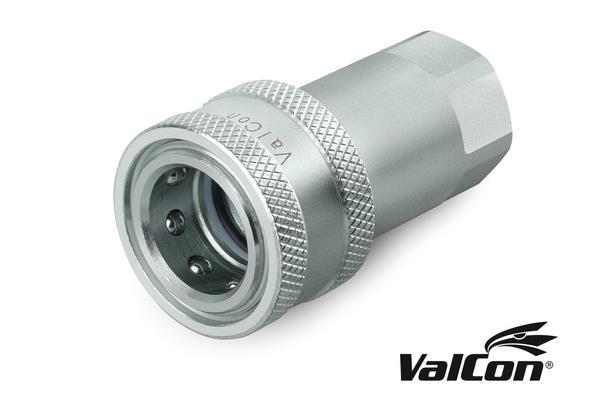

PLUG-IN COUPLING SLEEVE 1/2" BSP, DN12, BG3 ValCon® ISO7241-1A
Valcon® Plug-in coupling series VC-ISO-A (female)
Standard coupling for agriculture applications, interchangeability according to ISO 7241-1A
General data:
- Housing material: Steel
- Gasket material: NBR
Surface:
- Resistance to red rust [h]: 400
- Resistance to white rust [h]: 200
- Material: Zn-Fe (Chrome III)
Specifications:
- DN: 12
- Size: 08
- Inch: 1/2"
- Operating pressure (bar): 300
- Thread + standard: BSP female-thread ISO 1179-1
- Connection thread (GA): 1/2"
- Outer ØD sleeve (mm): 38.5
- Length of sleeve L2 (mm): 66.0
- SW1 (mm): 27
- l/min at 2 bar: 50
- Standard: ISO 7241-1A
- Temperature range: -20°C to +120°C
- Field of application: General application (e.g., agriculture)
