PORT COUPLING SOCKET IG 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A
PLUG-IN COUPLING SLEEVE IG 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A
PORT COUPLING SOCKET IG 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A

PLUG-IN COUPLING SLEEVE IG 1/4" BSP, DN06, BG1 ValCon® ISO7241-1A

Approx. 3-4 days Approx. 3-4 days (abroad may vary)
14,92 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

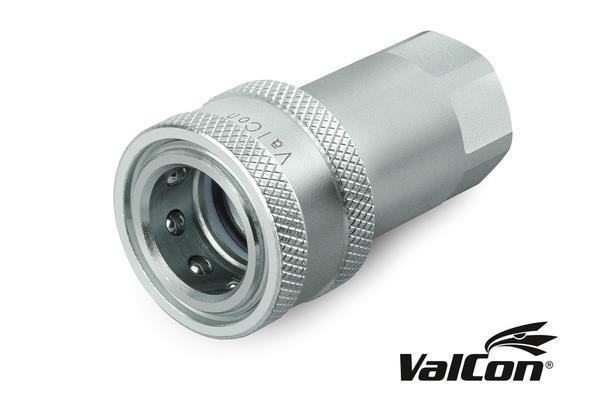

Valcon® Plug-in coupling series VC-ISO-A (female)

Standard coupling for agriculture applications, interchangeability according to ISO 7241-1A

General data:

  • Housing material: Steel
  • Gasket material: NBR
  • Resistance to red rust [h]: 400
  • Resistance to white rust [h]: 200
  • Material: Zn-Fe (Chrome III)

Surface:

  • Resistance to red rust [h]: 400
  • Resistance to white rust [h]: 200
  • Material: Zn-Fe (Chrome III)

Specifications:

  • DN: 6
  • Size: 04
  • Inch: 1/4
  • Operating pressure (bar): 350
  • Thread + standard: BSP female-thread ISO 1179-1
  • Connection thread (GA): 1/4"
  • Outer ØD sleeve (mm): 26.0
  • Length of sleeve L2 (mm): 50.0
  • SW1 (mm): 19
  • l/min at 2 bar: 8
  • Standard: ISO 7241-1A
  • Temperature range: -20°C to +120°C
  • Field of application: General application (e.g., agriculture)
