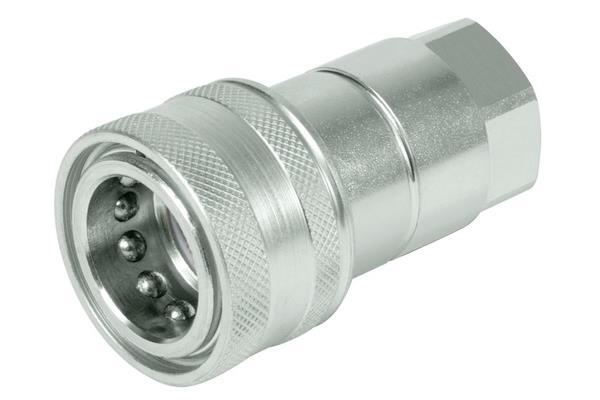

PLUG-IN COUPLING SLEEVE IG 1", DN 25, NBR, ValCon®

Plug-in coupling series VC-NV socket

Standard coupling for general applications (e.g. agricultural technology).

Advantages:

• Replaceable according to ISO 7241-1A

General data:

• Housing material: Steel
• Gasket material: NBR
• Back-up ring material: PTFE

Surface:

• Resistance to red rust [h]: 200
• Resistance to white rust [h]: 400
• Material: Zn-Fe (Chrome III)

Specifications:

• BG: 8
• DN: 25
• Size: 16
• Inch: 1
• Operating pressure (bar): 250
• Thread + standard: BSP female thread ISO 1179-1
• Connection thread (GA): 1"
• Outer Ød socket (mm): 56.2
• Sleeve length (mm): 97.5
• SW (mm): 41
• l/min at 2 bar: 180
• L1 (mm): 128.8
• Temperature range: -20°C to +100°C
• Field of application: General application (e.g. agriculture)
