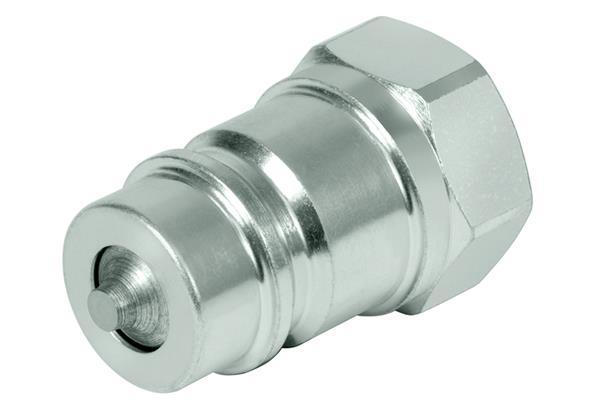

PORT COUPLING PLUG IG 3/4", DN 20, NBR, ValCon®

Plug-in coupling series VC-NV plug

Standard coupling for general applications (e.g. agricultural technology).

Advantages:

• Replaceable according to ISO 7241-1A

General data:

• Housing material: Steel
• Gasket material: NBR
• Back-up ring material: PTFE

Surface:

• Resistance to red rust [h]: 200
• Resistance to white rust [h]: 400
• Material: Zn-Fe (Chrome III)

Specifications:

• BG: 6
• DN: 20
• Size: 12
• Inch: 3/4
• Operating pressure (bar): 300
• Thread + standard: BSP female thread ISO 1179-1
• Connection thread (GA): 3/4"
• Outer Ød plug (mm): 28.0
• Plug length (mm): 61.3
• SW (mm): 34
• l/min at 2 bar: 100
• L1 (mm): 107,8
• Temperature range: -20°C to +100°C
• Field of application: General application (e.g. agriculture)
