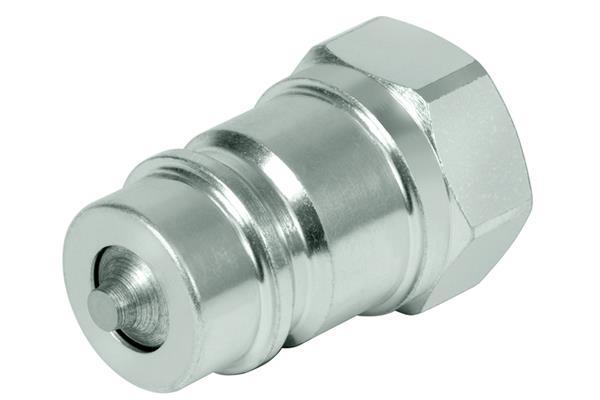

PORT COUPLING PLUG IG1/4", DN 06, NBR, ValCon®
Plug-in coupling series VC-NV plug
Standard coupling for general applications (e.g. agricultural technology).
Advantages:
- Replaceable according to ISO 7241-1A
General data:
- Housing material: Steel
- Gasket material: NBR
- Back-up ring material: PTFE
Surface:
- Resistance to red rust [h]: 200
- Resistance to white rust [h]: 400
- Material: Zn-Fe (Chrome III)
Specifications:
- BG: 1
- DN: 06
- Size: 04
- Inch: 1/4"
- Operating pressure (bar): 350
- Thread + standard: BSP female thread ISO 1179-1
- Connection thread (GA): 1/4"
- Outer Ød plug (mm): 14.3
- Plug length (mm): 36.0
- SW (mm): 19
- l/min at 2 bar: 12
- L1 (mm): 74,2
- Temperature range: -20°C to +100°C
- Field of application: General application (e.g. agriculture)
