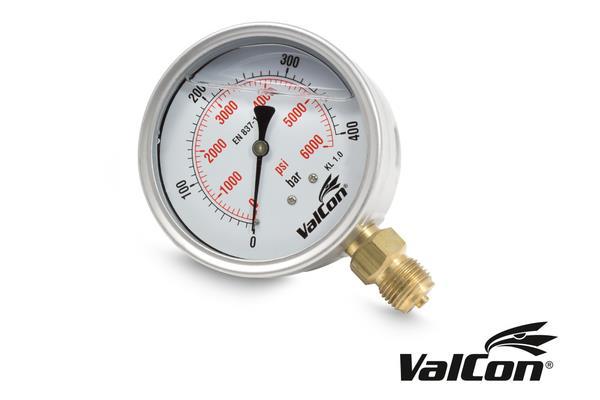

Double scale pressure gauge according to EN 837-1, NG 100
Specifications:
Connection thread (GA): 1/2" male thread
Pressure load (bar): Resting load: 3/4 x scale value, alternating load: 2/3 x scale value, short-term: 1 x scale value
Nominal size: 100
Ø cousing front side d1 (mm): 100.0
Scaling: bar/psi
H (mm): 135.0
t (mm): 50.0
Ø cousing back side d2 (mm): 96.0
Display range (bar): 0 - 10
Filling liquid: Glycerin 99.7%
Accuracy class: 1.0
Process connection: bottom
Temperature range (°C): -20°C to +60°C
Ambient temperature range (°C): -20°C to +80°C
Material connection: brass
Housing material: stainless steel
Glass material: safety glass
