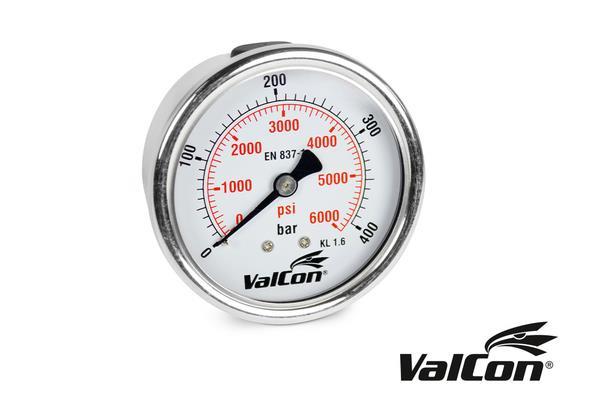

Double scale pressure gauge according to EN 837-1, NG 63
Specifications:
Connection thread (GA): 1/4" male thread
Pressure load (bar): Resting load: 3/4 x scale value, alternating load: 2/3 x scale value, short-term: 1 x scale value
Nominal size: 63
Ø cousing front side d1 (mm): 68.0
Scaling: bar/psi
t (mm): 29.5
Ø cousing back side d2 (mm): 62.0
T (mm): 57.5
Display range (bar): 0 - 100
Filling liquid: Glycerin 99.7%
Accuracy class: 1.6

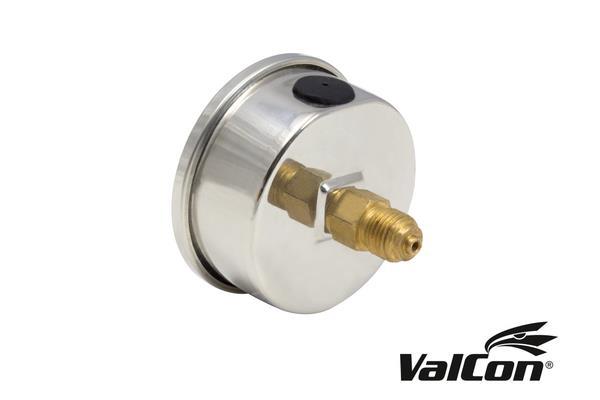

Process connection: lower back, centred
Temperature range (°C): -20°C to +60°C
Ambient temperature range (°C): -20°C to +80°C
Material connection: brass
Housing material: stainless steel
Glass material: Plastic, polycarbonate
Do you have any questions about our pressure gauges? Do you need help choosing the right pressure gauge? Then feel free to contact us by phone at +49 631 351240, via our contact form, by e-mail at shop@loesi.de or via What's App.
