Swage Fittings DKOS DN6 M16X1,5
Swage Fittings DKOS DN6 M16X1,5, Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
Specifications:
- Material: Free cutting steel
- Surface: Crlll

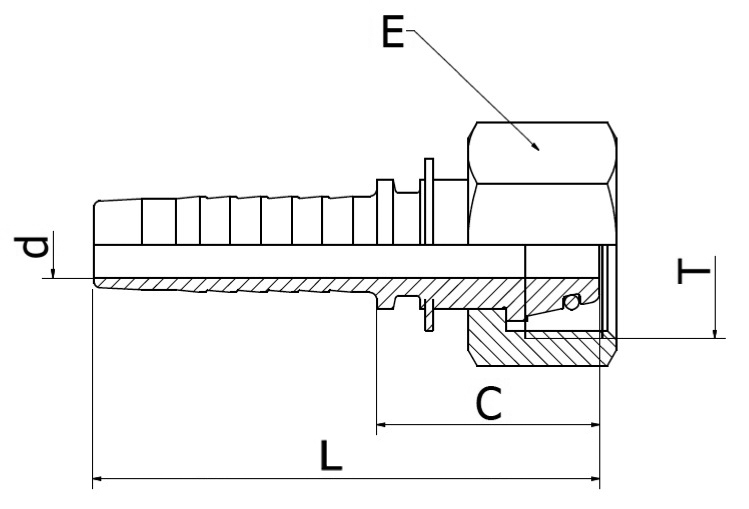

Technical Data:
- Nominal width: 6
- Size: 04
- Inch: 1/4
- Thread T: M16x1,5
- Cut-off C (mm): 25,0
- d (mm): 4,0
- E (mm): 19
- L (mm): 50
Do you have any questions about our swage fittings? Do you need support in choosing the right fitting? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
