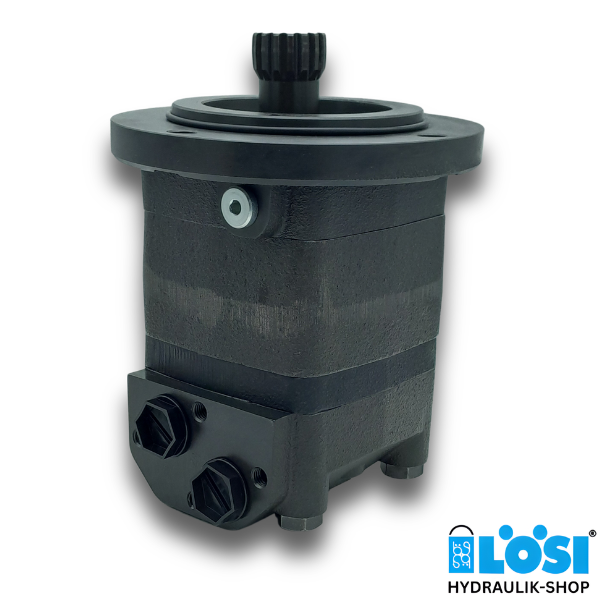

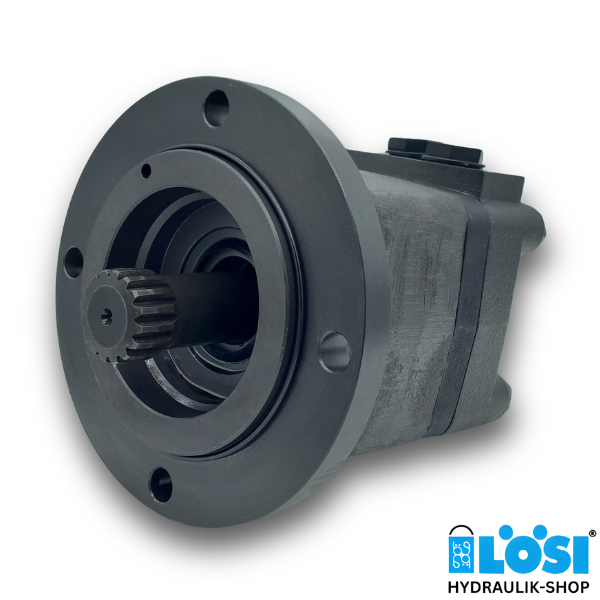

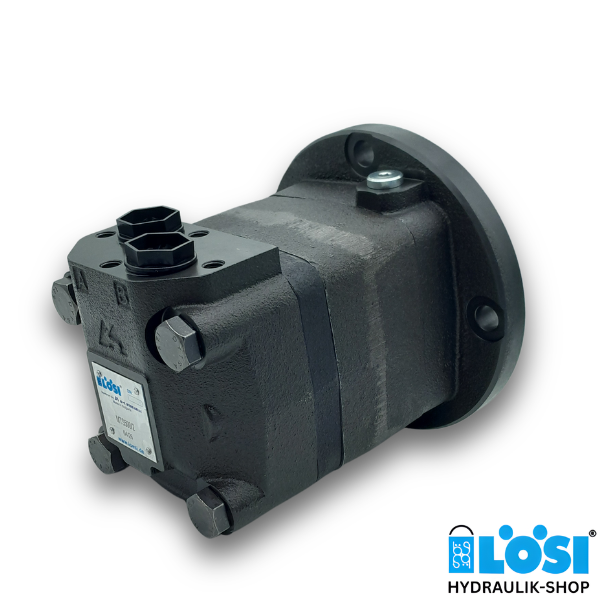

EPMT-S 250 Hydraulic Motor short

EPMT-S 250, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 251.8
• Side Ports 2x G3/4 inch BSPP

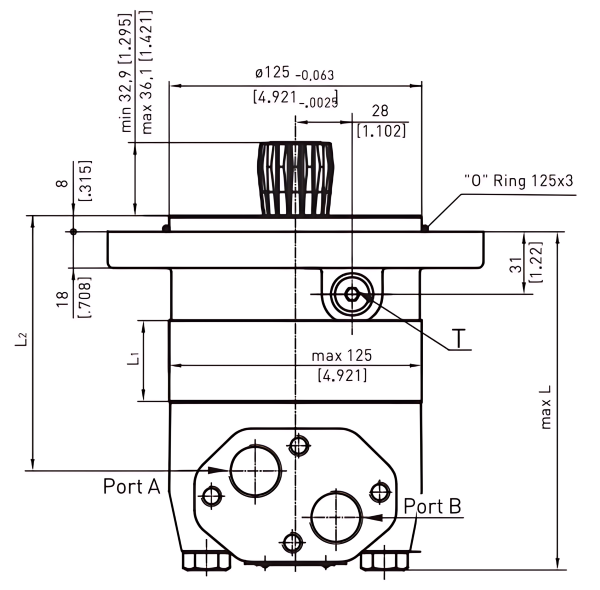

• Short Mount (hole distance: 160mm)

Technical Data (for continuous use):

• max. speed: 496 rev/min
• max. torque: 730 Nm
• max. output: 33.5 kW
• max. oil flow: 125 l/min
• max. inlet pressure: 210 bar
• minimum speed: 8 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 75 bar
• is suitable for mounting on a hydraulically ventable disc brake or a planetary gearbox

Download Datasheet EPMT

Special features like Low Leakage, Free Running, or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0011, OMTS 250 HYDR.MOTOR
• Danfoss, 151B3038, OMTS 250
• Danfoss, 151B3088, OMTS 250 SHORTVERSION
• Hydrauliknord, 651-M401, GMT-S 250

Do you have any questions about our hydraulic motor type EPMT? Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with WhatsApp.
