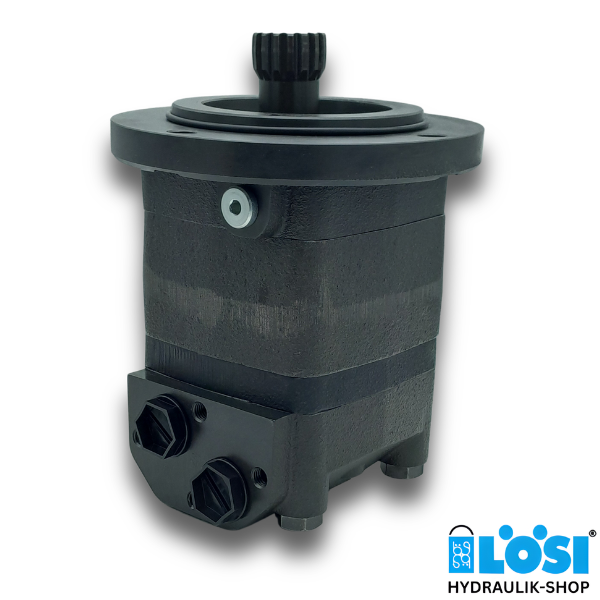

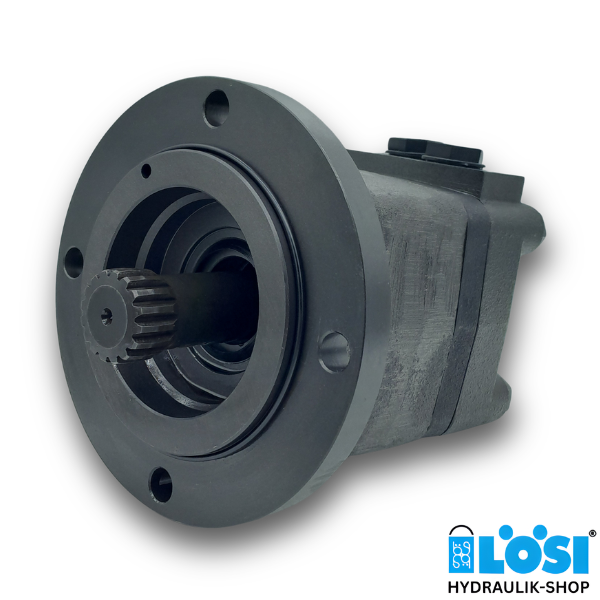

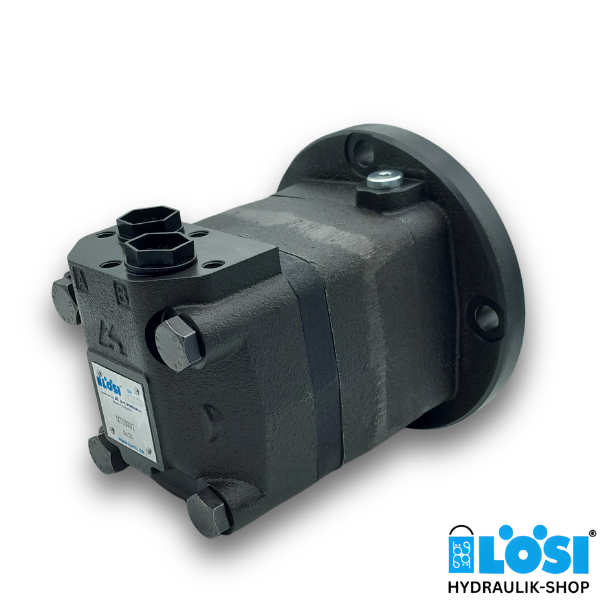

EPMT-S 725, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 724.3
- Side Ports 2x G3/4 inch BSPP
- Short Mount (hole distance: 160mm)
Technical Data (for continuous use):
- max. speed: 172 rev/min
- max. torque: 1270 Nm
- max. output: 20.2 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 5 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 75 bar
- is suitable for mounting on a hydraulically ventable disc brake or a planetary gearbox

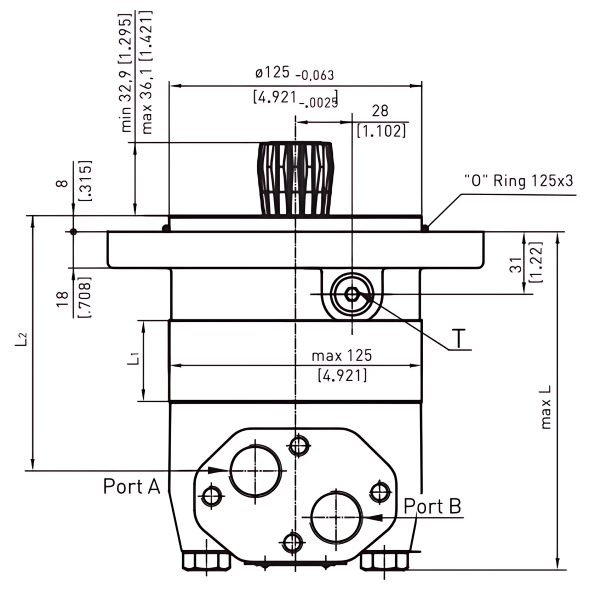

Download Datasheet EPMT
Special features like Low Leakage, Free Running, or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT? Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 352140, via our contact form , by email at info@hydraulikshop-loesi.de , or with WhatsApp .
