LBV 289/63 CB Disc Brake
LBV 289/63 CB Disc Brake
LBV 289/63 CB Disc Brake

LBV 289/63 CB Disc Brake

Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

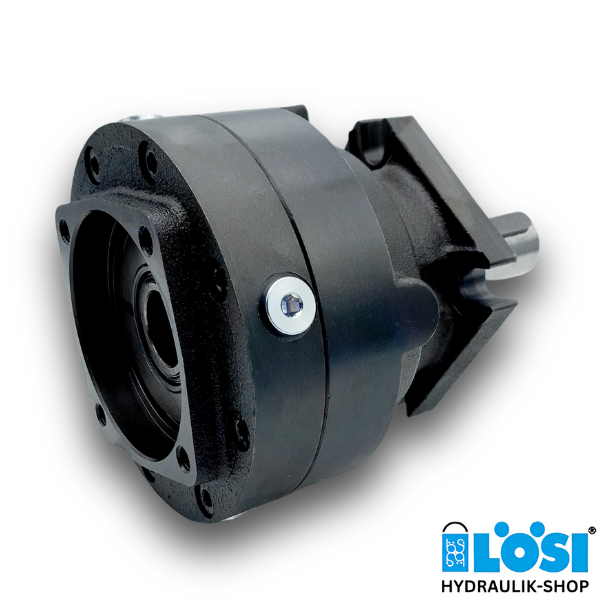

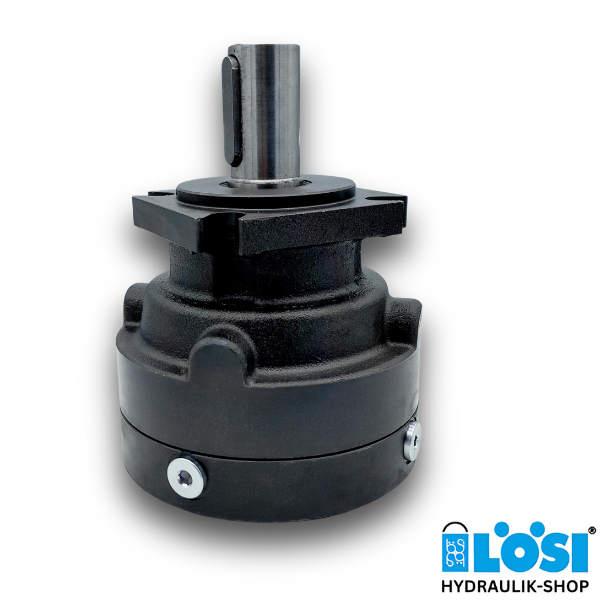

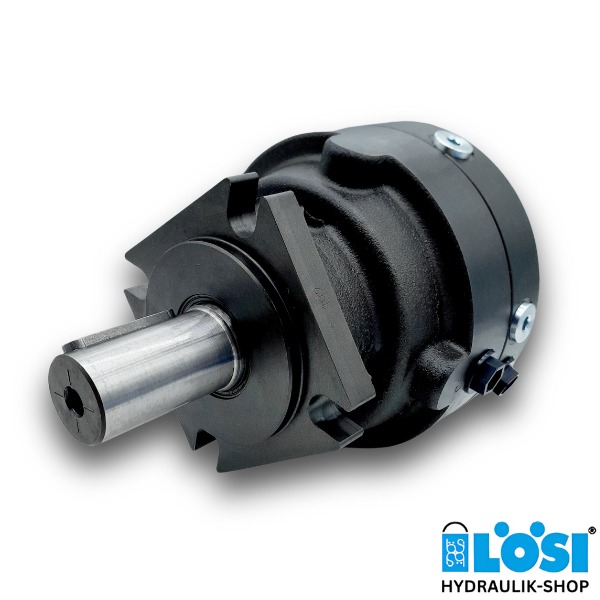

LBV 289/63-CB, LöSi Hydraulic Disc Brake, Static Brake, Multi Disc Brake

Specifications:

  • Static torque: 610-640 Nm
  • Output shaft: Cylindrical: Ø 32 mm
  • Ports: Brake release / Drainage tap: G1/4 inch BSPP
  • Suitable for hydraulic motor: EPMS-V (with hole distance: Ø 106 mm)
  • Before commissioning, fill approx. 120 ml of hydraulic oil into connection "D" (see data sheet)

Technical Data:

  • min. opening pressure: 38-39 bar
  • max. opening pressure: 300 bar

Download datasheet LBV

Special features or special paint with RAL-code are available for the most types. Please ask us for more information.

Do you have any questions about our hydraulic disc brake LBV? Do you need support in choosing the right LBV hydraulic disc brake? Then please contact us by phone on +49 631 352140, via our contactform , by email at  info@hydraulikshop-loesi.de or with What's App .
