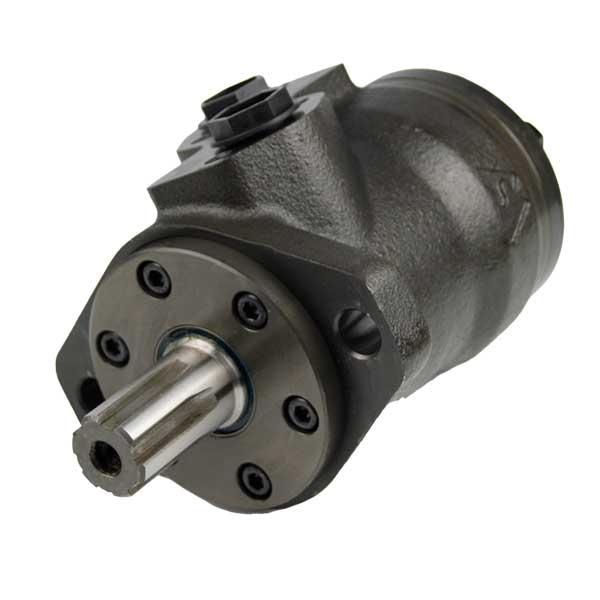

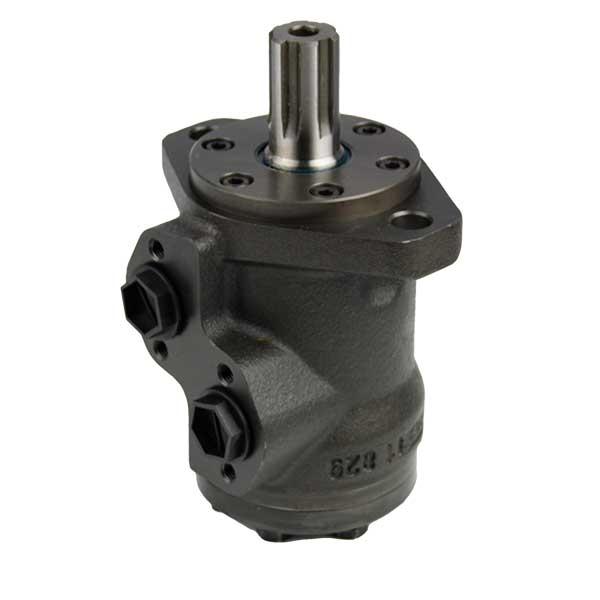

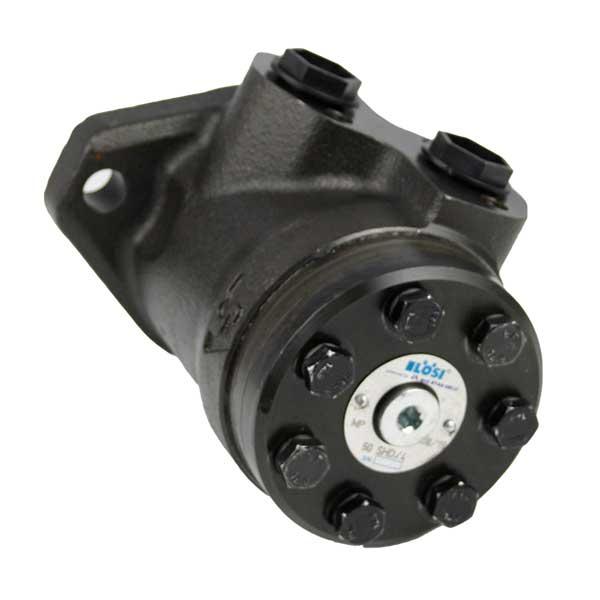

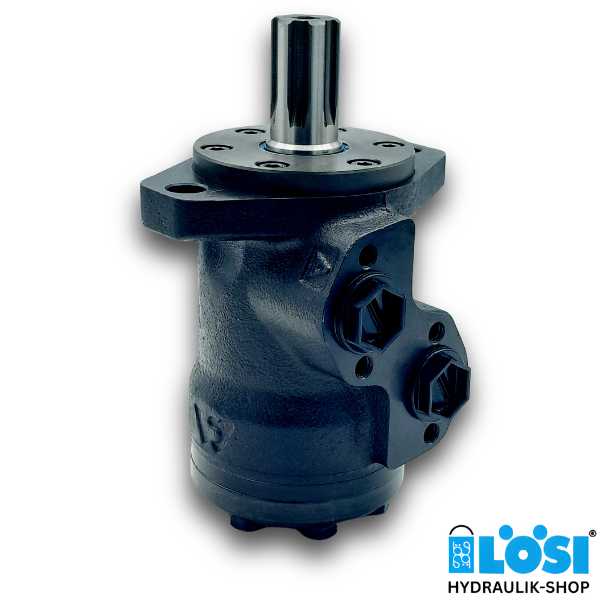

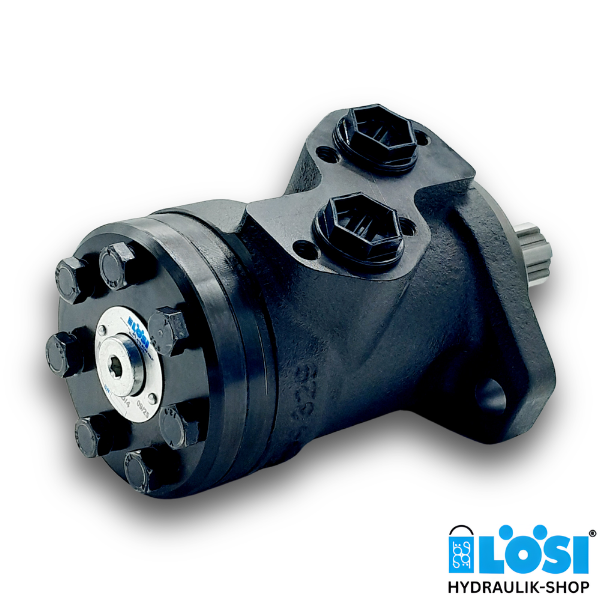

EPM 500 SH D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
Displacement [ccm/rev]: 495
Side ports 2x G 1/2 inch BSPP
Shaft: Splined (SAE 6B): Ø 25,32 mm, with high pressure seal "D"

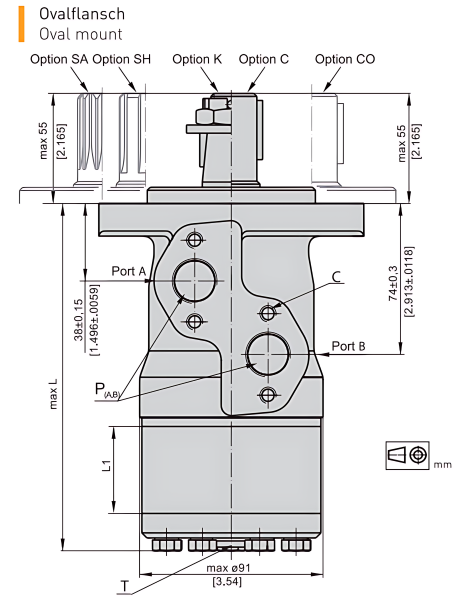

Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
max. speed: 120 rev/min
max. torque: 390 Nm
max. output: 3,5 kW
max. oil flow: 60 l/min
max. inlet pressure: 175 bar
minimum speed: 10 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 150 bar
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
