Block-Ball valve 2/2 ways DN6 G 1/4'' 500BAR, ValCon®
General Data:
- Versatile fastening possibilities due to integrated, threaded fastening holes (5mm, M6)
- Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
- Ergonomically shaped handle
- Precise operation due to optimally adjusted stem.
- Maintenance-free due to a floating ball embedded in the ball
- Preloaded ball
- Galvanized surface
Technical Data:
- Housing: Steel
- Switching shaft: Steel
- Nominal Size: DN6
- Port: G 1/4''

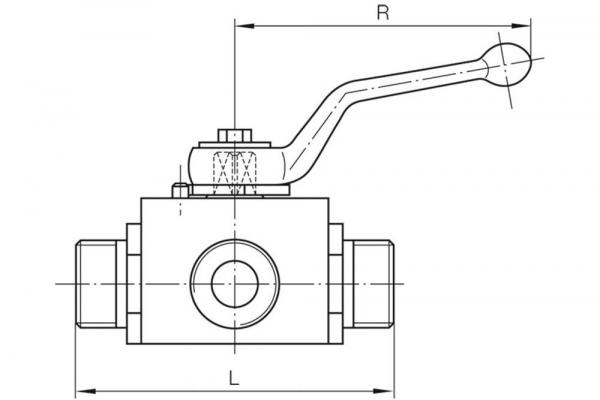

- Length (mm): 69,0
- Lever Length (mm): 108,0
- Working p (bar): 500
Download data sheet
