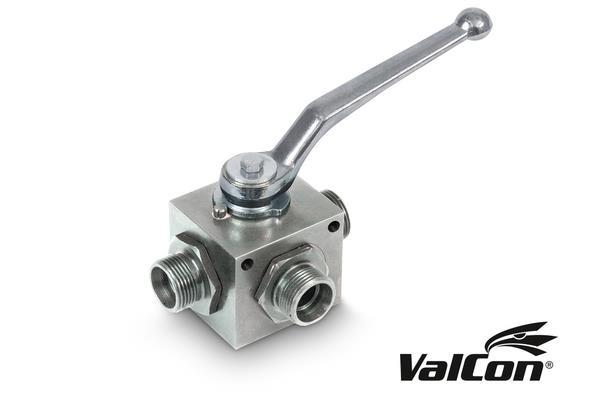

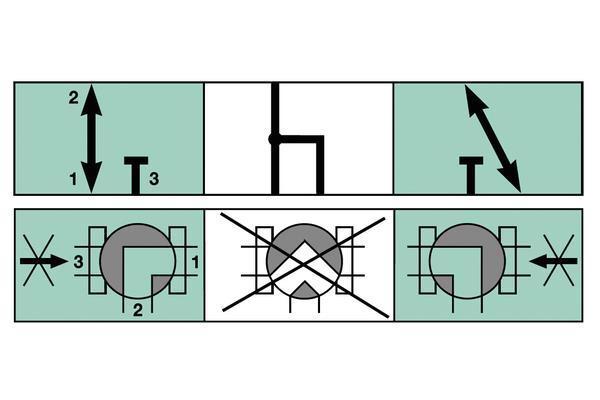

Multiple way ball valve 3/2 ways DN16 Pipe 20S 315BAR, ValCon®
General Data:
- Versatile fastening possibilities due to integrated, threaded fastening holes (5mm, M6)
- Solderless fittings DIN 2353, heavy series
- Ergonomically shaped handle
- Precise operation due to optimally adjusted stem.
- Maintenance-free due to a floating ball embedded in the ball
- Preloaded ball
- Galvanized surface
Technical Data:
- Housing: Steel
- Switching shaft: Steel
- Nominal Size: DN16
- Pipe-Ø (mm): 20S
- Port: M30x2,0

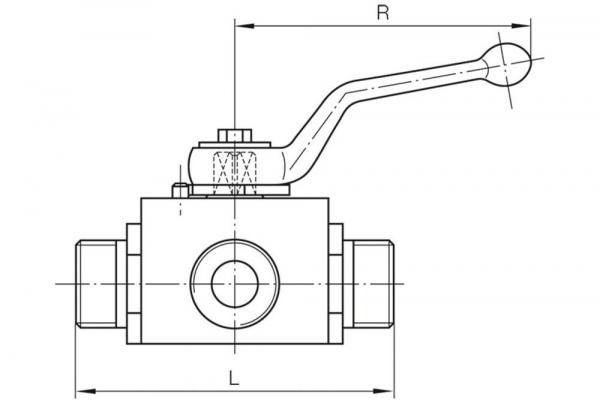

- Length (mm): 90,0
- Lever Length (mm): 155,0
- Working pressure (bar): 315
Download data sheet
Do you have any questions about our ball valves? Do you need support choosing the right one? Then please contact us by phone on +49 631 352140, via our contact form, via E-Mail at shop@loesi.de or via What's App.
