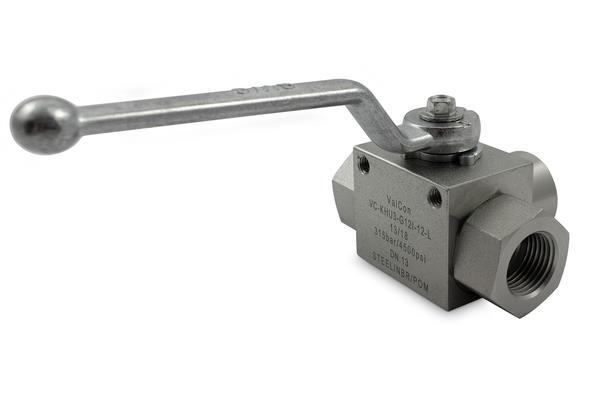

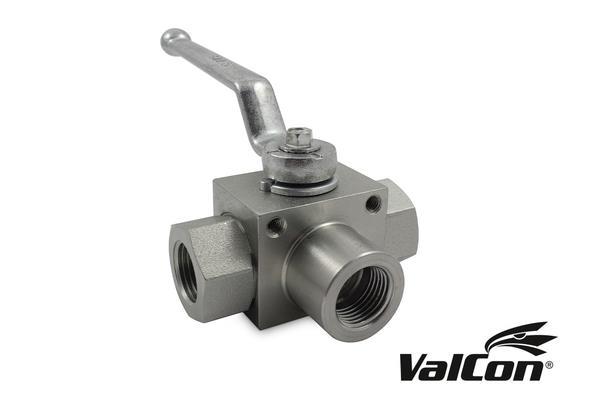

Multiple way ball valve 3/2 ways DN12 Port G1/2'' 315BAR, ValCon®

Multiple way ball valve 3/2 ways DN12 Port G1/2'' 315BAR, ValCon®

General Data:

• Versatile fastening possibilities due to integrated, threaded fastening holes (5mm, M6)
• Withworth-Pipe thread DIN EN ISO 228-1
• Ergonomically shaped handle
• Precise operation due to optimally adjusted stem.
• Maintenance-free due to a floating ball embedded in the ball
• Preloaded ball
• Galvanized surface

Technical Data:

• Housing: Steel
• Switching shaft: Steel
• Nominal Size: DN12
• Port: G 1/2''

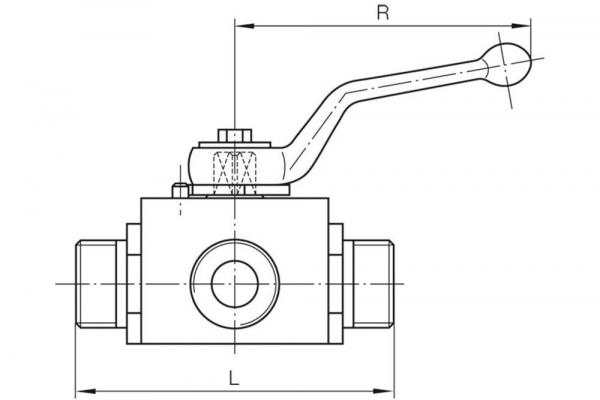

• Length (mm): 83,0
• Lever Length (mm): 108,0
• Working pressure (bar): 315

Download data sheet
