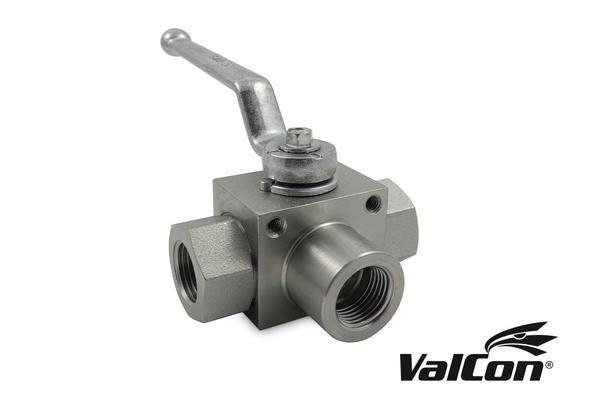

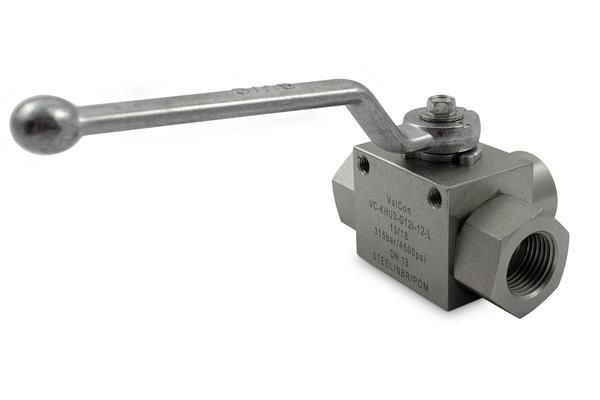

Multiple way ball valve 3/2 ways DN10 Port G3/8'' 315BAR, ValCon®
General Data:
- Versatile fastening possibilities due to integrated, threaded fastening holes (5mm, M6)
- Withworth-Pipe thread DIN EN ISO 228-1
- Ergonomically shaped handle
- Precise operation due to optimally adjusted stem.
- Maintenance-free due to a floating ball embedded in the ball
- Preloaded ball
- Galvanized surface
Technical Data:
- Housing: Steel
- Switching shaft: Steel
- Nominal Size: DN10
- Port: G 3/8''

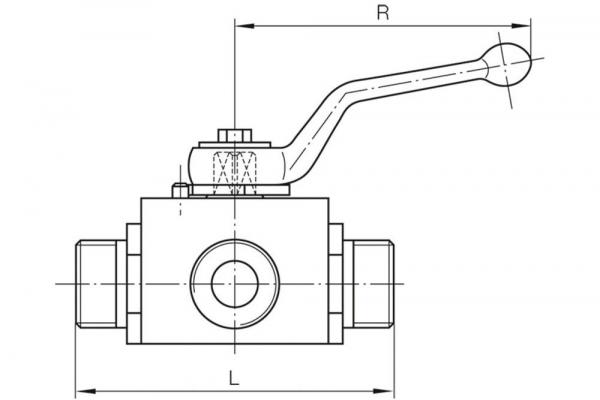

- Length (mm): 72,0
- Lever Length (mm): 108,0
- Working pressure (bar): 315
Download data sheet
Do you have any questions about our ball valves? Do you need support choosing the right one? Then please contact us by phone on +49 631 351240, via our contact form, via E-Mail at shop@loesi.de or via What's App.
