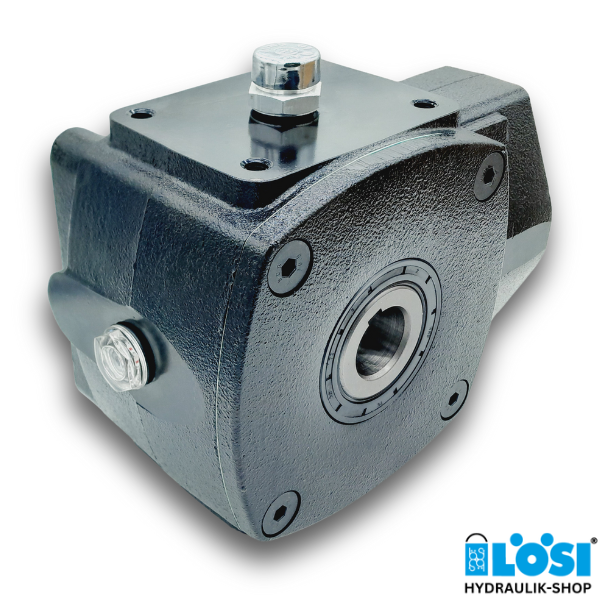

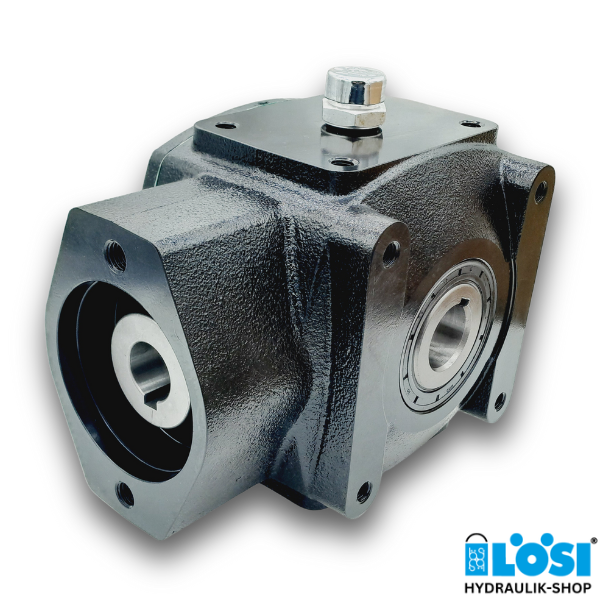

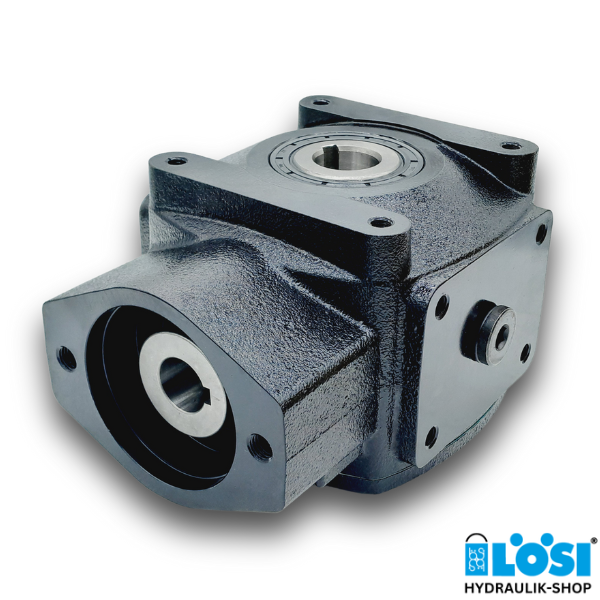

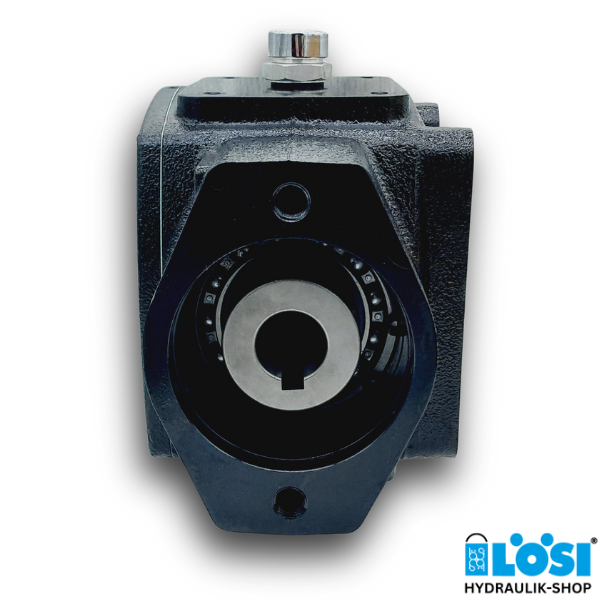

Scraper Floor Gearbox Type 9030
Hydraulic Scraper Floor Drive - Hydraulic Gearbox 9030

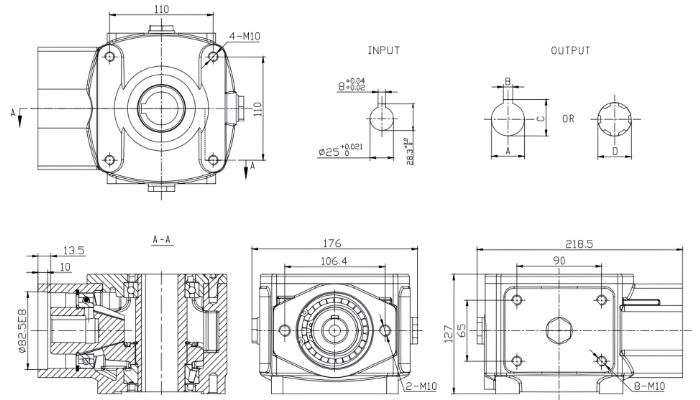

Technical Data:
- Torque 900 Nm
- Reduction ratio: 3.1:1
- Shaft input output (A) Ø30mm
- Shaft input drive Ø25mm
- Input: Hydraulic motor with 25 mm shaft, SAE A flange (e.g. CPRM)
- Robust cast iron construction
- Weight: 11,5kg
- Higher torque with single gerotor motor
- Gear oil recommendation: SAE 80W-90, 1 litre
- Alternative to Berma RT90
