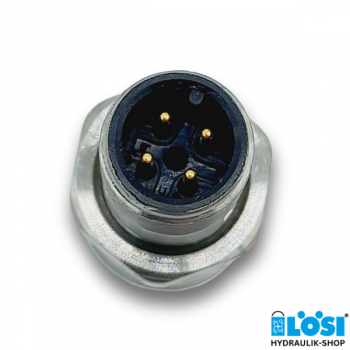

Speed Sensor SH M12 UD Universal

Speed Sensor for all Hydraulic Planetary Motors (EPMM, EPM, EPRM, EPMS, EPMT, EPMV), Universal (push-pull, NPN/PNP), M12x1

General Data:

A speed sensor for hydraulic motors measures the speed (revolutions per minute) of the motor shaft and supplies this information to control or monitoring systems. These sensors are essential for applications where precise control or monitoring of the motor speed is required, such as in agricultural machinery, municipal vehicles, construction machinery or industrial systems.

Technical Data:

• Max. static operating pressure: 500 bar
• Max. dynamic operating pressure: 250 bar
• Supply voltage: 9 - 30 VDC
• Max. output current: 200mA/30VDC
• Protection class: IP67
• Connector: BINDER 713
• Thread: M12x1

Data sheet speed sensor

Do you have any questions about our speed sensor? Do you need support in choosing the right speed sensor? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
