Swage fitting CEL DN6 M18X1,5
Swage Fitting CEL DN6 M18X1,5, Threaded stem with bore form W (24°) according to DIN 3861, light series
Specifications:
- Material: free cutting steel
- Surface: Crlll

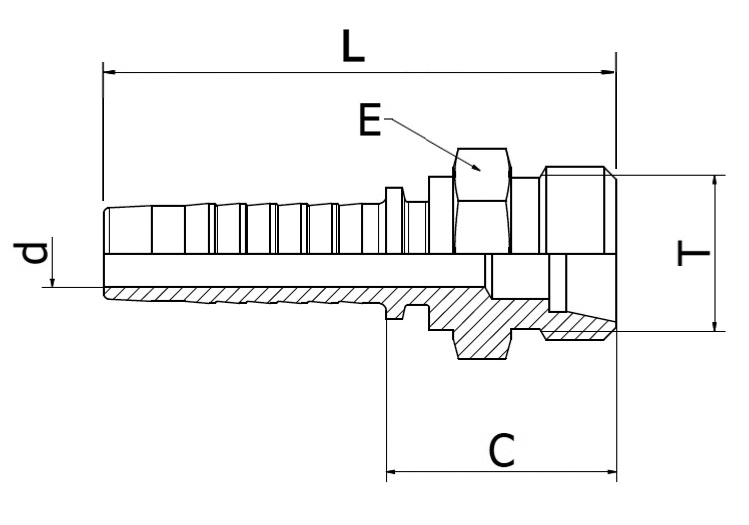

Technical data:
- Nominal width: 6
- Size: 04
- Inch: 1/4
- Thread T: M18x1,5
- Cut-off C (mm): 24,0
- d (mm): 4,0
- E (mm): 19
- L (mm): 49,0
Do you have any questions about our swage fittings? Do you need support in choosing the right fitting? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
