Swage fitting DKJ-90 DN12 7/8
Swage Fitting DKJ-90 DN12 7/8, JIC threaded adapter, 74° cone with union nut, UN/UNF thread, Free cutting steel
Specifications:
- Material: Free cutting steel
- Surface: Crlll

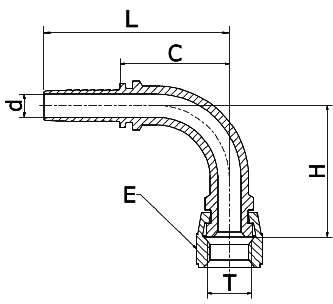

Technical data:
- Nominal width: 12
- Size: 08
- Inch: 1/2
- Thread T: 7/8-14
- Cut-off C (mm): 42,0
- d (mm): 9,5
- E (mm): 27
- H (mm): 42,0
- L (mm): 73,5
