Swage fittings DKOL DN8 M14X1,5
Swage fittings DKOL DN8 M14X1,5
Swage fittings DKOL DN8 M14X1,5

Swage fittings DKOL DN8 M14X1,5

Approx. 3-4 days Approx. 3-4 days (abroad may vary)
2,96 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Swage fitting with sealing cone and O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

Specifications:

  • Material: free cutting steel
  • Surface: Crlll

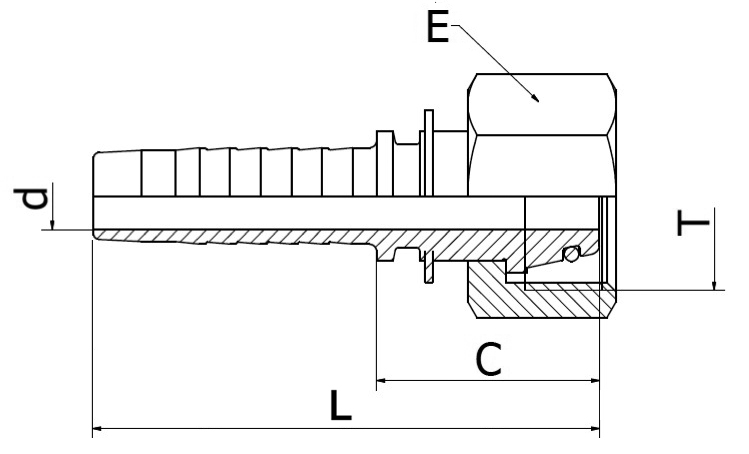

Technical data:

  • Nominal width: 8
  • Size: 05
  • Inch: 5/16
  • Thread T: M14x1,5
  • Cut-off C (mm): 22,7
  • d (mm): 5,5
  • E (mm): 17
  • L (mm): 50,2
  • PU: 5


Do you have any questions about our swage fittings? Do you need support in choosing the right fitting? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
