Hydraulic swage fitting DKR-90 DN6 G1/4
Swage Fitting DKR-90 DN6 G1/4, BSP sealing head, 60° cone with union nut, BSP thread
Specifications:
- Material: free cutting steel
- Surface: Crlll

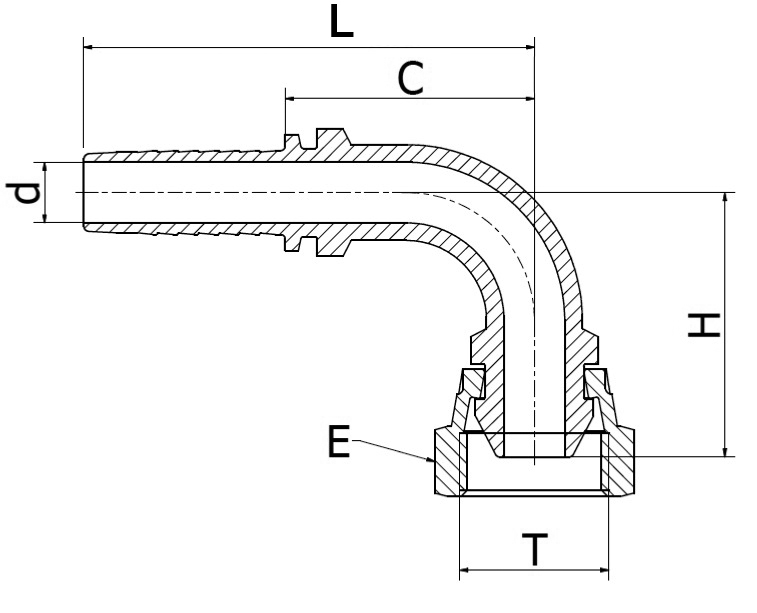

Technical data:
- Nominal width: 6
- Size: 04
- Inch: 1/4
- Thread T: 1/4-19
- Cut-off C (mm): 25,0
- d (mm): 4,0
- E (mm): 19
- H (mm): 28,0
- L (mm): 50,0
