Swage Fittings ORFS DN06 11/16-16.UN
Swage Fittings ORFS DN06 11/16-16.UN, ORFS sealing form, with union nut, UN/UNF/UNS-Thread
Specifications:
- Material: Free cutting steel
- Surface: Crlll

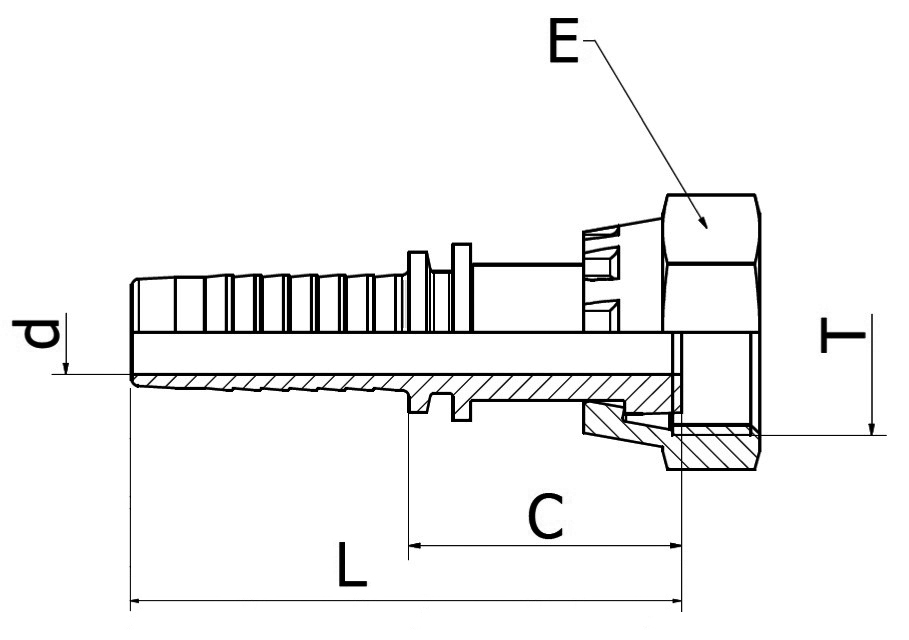

Technical data:
- Nominal width: 6
- Size: 04
- Inch: 1/4
- Thread T: 11/16-16
- Cut-off C (mm): 24,0
- d (mm): 4,0
- E (mm): 22
- L (mm): 49,0
Do you have any questions about our swage fittings? Do you need support in choosing the right fitting? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
