Swage Fittings SFL-3-45 DN20 1
Swage Fittings SFL-3-45 DN20 1, Flange head SAE J514 (ISO 6162) high pressure series 3.000 psi
Specifications:
- Material: free cutting steel
- Surface: Crlll

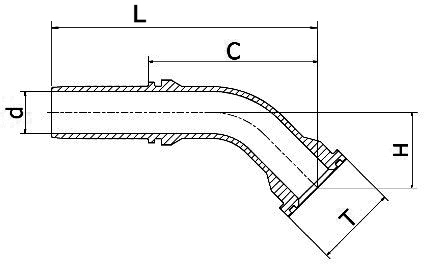

Technische Daten:
- Nominal width: 19
- Size: 12
- Inch: 3/4
- Thread T: 1
- Cut-off C (mm): 70,0
- d (mm): 15,0
- H (mm): 35,0
- L (mm): 122,5
Do you have any questions about our swage fittings? Do you need support in choosing the right fitting? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
