Swage Fittings SFL-3 DN25 1
Swage Fittings SFL-3 DN25 1, Flange head SAE J514 (ISO 6162) high pressure series 3.000 psi
Specifications:
- Material: free cutting steel
- Surface: Crlll
Technische Daten:
- Nominal width: 25
- Size: 16
- Inch: 1

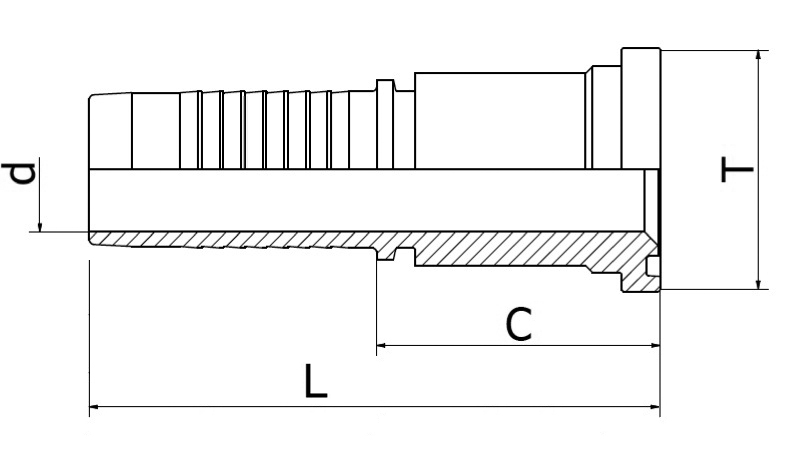

- Thread T: 1
- Cut-off C (mm): 54,0
- d (mm): 20,0
- L (mm): 107,5
