Swage Fittings SFS-6-45 DN20 3/4
Swage fittings SFS-6-45 DN20 3/4, flange head SAE J514 (ISO 6162) high pressure series 6.000 psi
Specifications:
- Material: free cutting steel
- Surface: Crlll

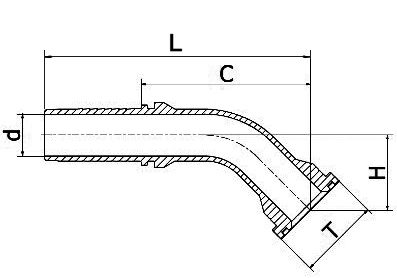

Technical data:
- Nominal width: 19
- Size: 12
- Inch: 1/2
- Thread T: 3/4
- Cut-off C (mm): 72.0
- d (mm): 15,0
- H (mm): 30,0
- L (mm): 121,5
