Swage Fittings SFS-6 DN25 1
Swage fittings SFS-6 DN25 1, Flange head SAE J514 (ISO 6162) high pressure series 6.000 psi
Specifications:
- Material: free cutting steel
- Surface: Crlll
Technische Daten:
- Nominal width: 25
- Size: 16
- Inch: 1
- Thread T: 1

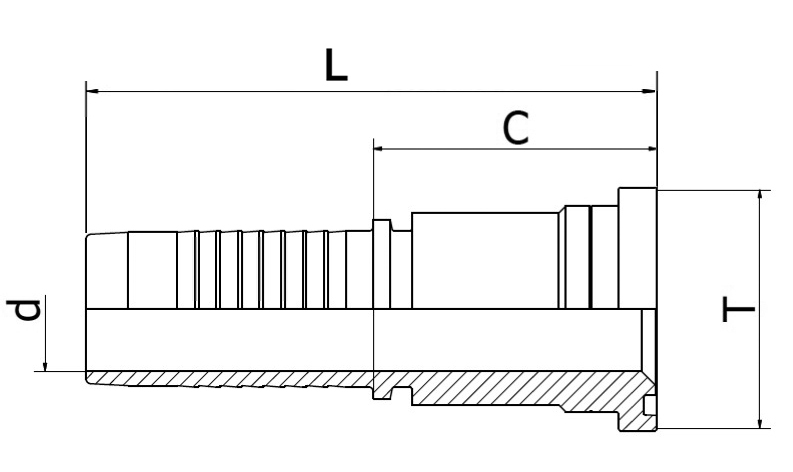

- Cut-off C (mm): 61,0
- d (mm): 20,0
- L (mm): 114,5
Do you have any questions about our swage fittings? Do you need support in choosing the right fitting? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
