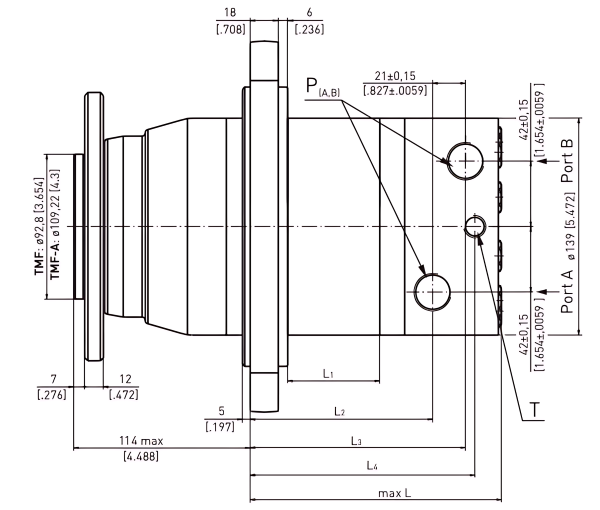

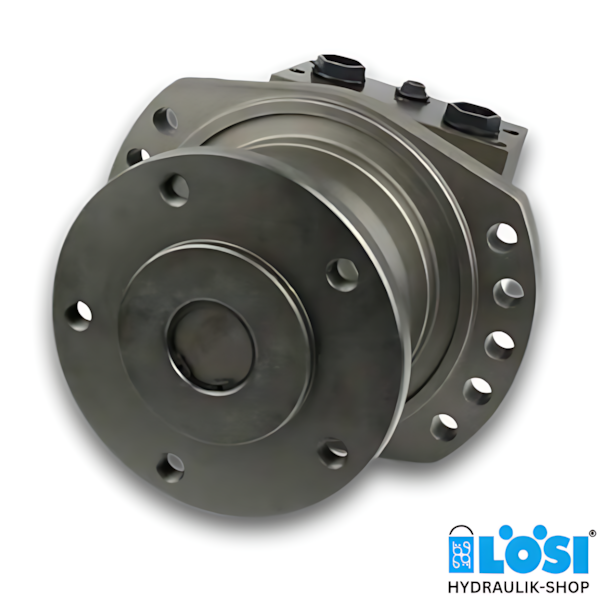

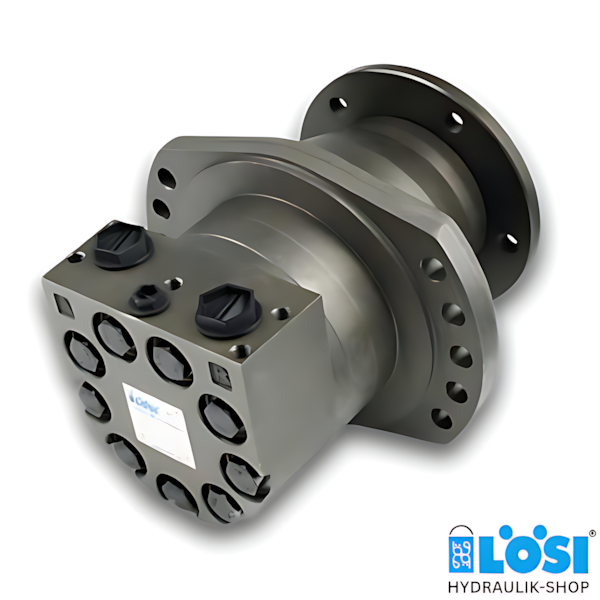

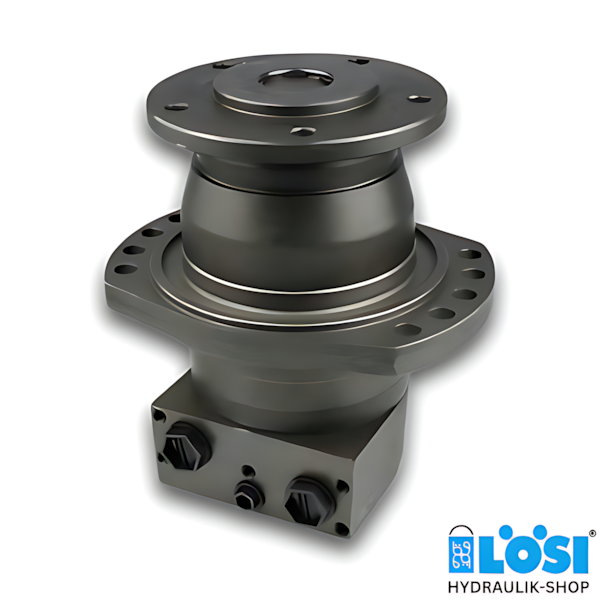

TMF 315 HD, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 326.3
Side ports 2x G3/4 inch BSPP
Shaft: Wheel flange threaded holes 5xM14x1.5
Flange: 10 Holes (hole distance: 210 mm)

Technical Data (for continuous use):

max. speed: 380 rev/min
max. torque: 1160 Nm
max. output: 41 kW
max. oil flow: 125 l/min
max. inlet pressure: 270 bar
minimum speed: 5 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 75 bar

Download datasheet TMF

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type TMF. Do you need support in choosing the right TMF hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform, by email at shop@loesi.de or with What's App.
